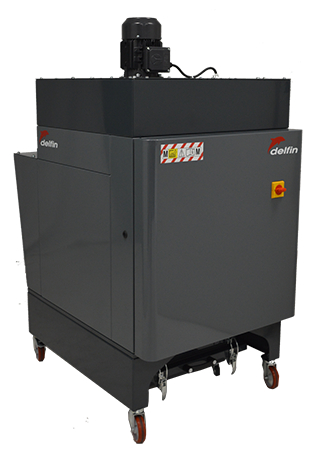

ZEFIRO CUBE 20
INDUSTRIAL DUST COLLECTOR FOR RECOVERY AND FILTRATION OF LIGHT AND FINE SUSPENDED PARTICLES OF DUST

  • OEM Original Equipment Manufacturers
  • Chemical-pharmaceutical
  • Electronics

The Zefiro CUBE 20 is an industrial dust collector with high air flow rate for localized suction (thanks to one or two optional articulated arms) or on the machine for fine dust. The electric fan is capable of generating high air flow values. The large filter cartridges ensure the total filtration of the extracted dust, which is constantly cleaned by an automatic differential pressure cleaning system. A convenient container to release allows to simply dispose of the powders sucked.

ADVANTAGES

  • Complete steel construction
  • High filtration efficiency
  • High air flow value
  • Conceived for the suction of fine dusts suspended in the air
  • Optional articulated arm to suction in a restricted area
  • Easily removable container for safe disposal of collected material

DATASHEET

Index UnitZEFIRO CUBE 20
VoltageV - Hz400 - 50
Power kW1,5
Electrical protectionIP55
Max water liftmmH₂O142 - 115
Max air flowm³/h1350 - 2400
Suction inletmm1x 200 | 2x 150
Noise level (EN ISO 3744)dB(A)70
Filter TypeCartridge
Surface - Diametercm²-mm200.000
Material - EfficiencyIEC 60335-2-69Polyester - ANT M
Cleaning systemAutomatic
Cartridge number2
Capacitylt30
Dimensionscm115x82x170h
Weightkg235
Download ZEFIRO CUBE 20Download technical sheet
