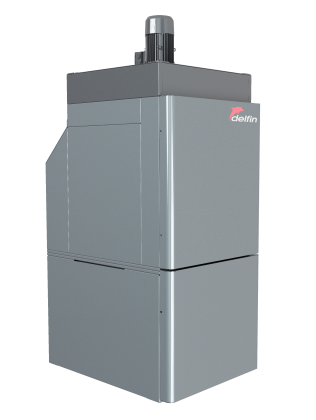

ZEFIRO CUBE 40
INDUSTRIAL DUST COLLECTOR FOR RECOVERY AND FILTRATION OF LIGHT AND FINE SUSPENDED PARTICLES OF DUST

  • OEM Original Equipment Manufacturers
  • Chemical-pharmaceutical

The ZEFIRO CUBE 40 dust collector is the ideal solution for the extraction of suspended fine dust and the extraction of welding fumes. Whether it is marble, stone or even flour, where there is a puff of very fine dust, it is good to ensure that it is removed as effectively as possible.
The fixed structure allows it to be installed via a centralised system, connected by suction pipes that are distributed to several points.
The Zefiro Cube 40 guarantees a very high filtration capacity thanks to the 4 M-class antistatic polyester filter cartridges, which maintain their maximum efficiency thanks to the automatic and pneumatic cleaning system.
The collected material is deposited in a 90-litre container, which can be easily removed on wheels.

ADVANTAGES

  • Complete steel construction
  • High filtration efficiency
  • High air flow value
  • Conceived for the suction of fine dusts suspended in the air
  • Optional articulated arm to suction in a restricted area
  • Easily removable container for safe disposal of collected material

DATASHEET

Index UnitZEFIRO CUBE 40
VoltageV - Hz400 - 50
Power kW3
Electrical protectionIP55
Max water liftmmH₂O270 - 191
Max air flowm³/h2100 - 3800
Suction inletmm250
Noise level (EN ISO 3744)dB(A)68
Filter TypeCartridge
Surface - Diametercm²-mm400.000
Material - EfficiencyIEC 60335-2-69Polyester - M
Cleaning systemAutomatic PN
Cartridge number4
Capacitylt90
Dimensionscm120x110x250h
Weightkg350
Download ZEFIRO CUBE 40Download technical sheet
