Overview
Description
The SEP.DC-001 is the preseparators for medium toxic pharmaceutical dust with DC containment system, designed for the safe collection of API (Active Pharmaceutical Ingredients) and dust with OEL between 1 μg/m³ and 10 μg/m³. The double bag containment system ensures that pharmaceutical dust is confined in sealed bags before removal, fully protecting operators from contact with potentially hazardous materials.
The double bag mechanism (inner bag + outer bag) creates a physical barrier that prevents any dust dispersion during emptying and disposal operations. The AISI 316L stainless steel construction with polished internal finish and cGMP design facilitates cleaning and system validation. Compatible with PHARMA Delfin vacuum units.
Ideal for the pharmaceutical industry working with high potency active substances (HPAPI), generic production with high potency active ingredients and any process requiring the safe collection of dust with high biological activity. Compliant with international GMP and cGMP requirements. Available in different volumetric configurations to suit various production needs.
The double bag mechanism (inner bag + outer bag) creates a physical barrier that prevents any dust dispersion during emptying and disposal operations. The AISI 316L stainless steel construction with polished internal finish and cGMP design facilitates cleaning and system validation. Compatible with PHARMA Delfin vacuum units.
Ideal for the pharmaceutical industry working with high potency active substances (HPAPI), generic production with high potency active ingredients and any process requiring the safe collection of dust with high biological activity. Compliant with international GMP and cGMP requirements. Available in different volumetric configurations to suit various production needs.
Features
Application
Available in version with WIP (wash in place) to neutralize dust
on internal surfaces
Footprint

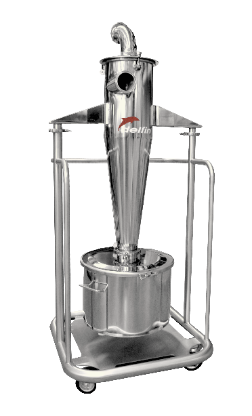

Pre-separator cyclone without filter, AISI316 stainless steel, polished inside and outside. AISI304 trolley
Filter
Dust separation efficiency with cyclone at 98%
Features
Cleaning operations are carried out safely and quickly for the safety
of operators
Compliance
Delfin units ensure significant cost reduction
Technical specs
Technical details
| Unit of measure | Data | |
|---|---|---|
| Inlet Diameter | mm | 3'' |
| Bin Capacity | lt. | 25 |
| Dimensions | cm | 72x75x240h |
| Weight | Kg | 65 |
| Max Airflow | 1.000 |
Documentation
Publications
PDF, 166.72 KB
PDF, 267.49 KB
Accessories
Accessories
KT.1782.0000
Crimping tool and cutter + 10 pcs caps
KT.1780.0000
Filter, nylon bag, bottom with gasket and knob
TA.1218.0000
Clamp kit 3" flexible
ø70 in stainless steel polished inside and outside
Optionals
WIP
Washing in place
