ZFR EV 420 K07

Loading 3D model

Overview

Description

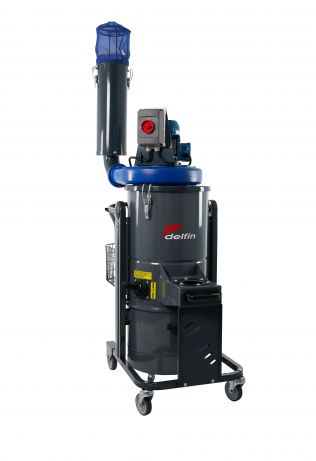

The EV420 dust collector vacuums fumes and dust suspended in work environments, allowing to maintain maximum environmental health. The electric fan it is equipped with guarantees high air flow rates, with constant suction performance over time.

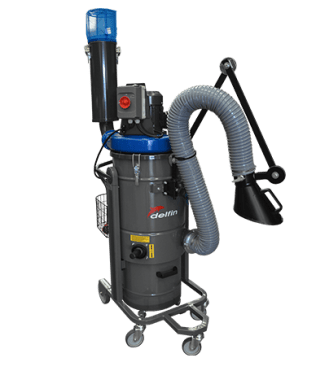

Large polyester filter and 45-liter dust collection capacity, a real must for those who deal daily with dust released into the work environment. The filter purifier can be supplied with suction arm already mounted or for installation in dust extraction systems.

Its features make it perfect for any industrial application in explosion risk areas that require ATEX certification of the equipment.
Its filtration and suction features make it the industrial dust collector par excellence for use in Atex 22 environments.

Features

Application

For fine dust suspended in the air

Footprint

Compact and mobile

Material

Complete painted steel construction

Filter

Polyester class L/M with manual filter cleaning system

Features

High air flow dust collector

Technical specs

Technical details

ZFR EV 420 K07
	Unit of measure	Data
Voltage	V	400
Power	kW	1.15
Frequency	Hz	50
Current Draw	A	1.70
Inlet Diameter	mm	100
Bin Capacity	lt.	45
Noise Level (EN ISO 3744)	dB(A)	70
Dimensions	cm	58x93x190h
Weight	Kg	60
Electrical Protection Rating	IP	65
Max Vacuum Rate		180
Continuous Duty Vacuum		180
Max Airflow		1.000
Motor Type		Electric fan

Certifications

Filter class

	Unit of measure	Data
Primary Filter		Star
Primary filter surface area	cm²	20.000
Primary filter diameter	mm	420
Primary filter media		Polyester
Primary filter class (IEC 60335-2-69)		L
Filter cleaning system		Manual

Unit of measure

Data

Primary Filter

Star

Primary filter surface area

cm²

20.000

Primary filter diameter

420

Primary filter media

Polyester

Primary filter class (IEC 60335-2-69)
