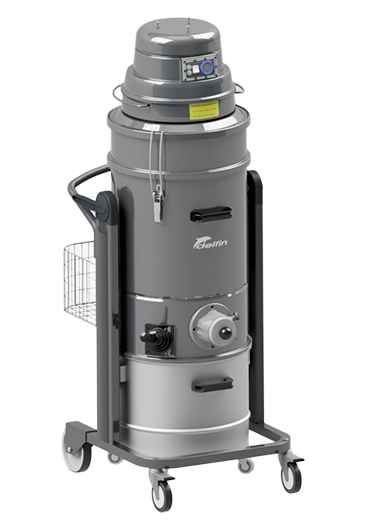

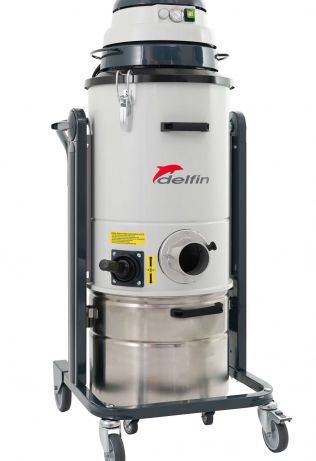

MTL 451-452
ATEX CERTIFIED COMPACT SINGLE-PHASE INDUSTRIAL VACUUM CLEANER AND ACD

The ATEX 451 industrial vacuum cleaner, in its ACD version and with double ATEX certification for external zone 20 and internal zone 22/21, has been designed to vacuum combustible dust in total safety both in working environments with explosive atmospheres and in areas not classified where ATEX certification is not required.
For the ATEX certified models, our technical team has developed an innovative single-phase Brushless or Bypass head protected by the Ex tb certified safety enclosure that prevents the entry of combustible dust preventing explosion risks.
The container is made of stainless steel AISI304 with 40-liters capacity.
The antistatic polyester filter M and the absolute filter HEPA are standard for maximum filtration efficiency up to 99.995% of particles with 0.18 μm.

OTHER SETUPS

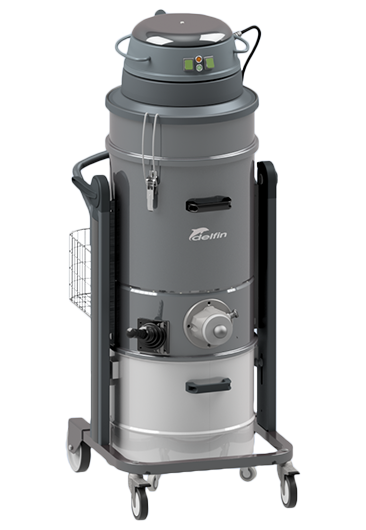

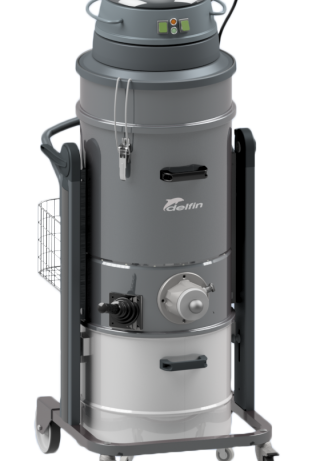

MTL 452 ACD
ACD COMPACT SINGLE-PHASE INDUSTRIAL VACUUM CLEANER FOR COMBUSTIBLE DUST IN NON-ATEX ZONES

  • Cement
  • Ceramics and pottery industries
451 ACD classified single-phase industrial vacuum cleaner

Compact, versatile, safe. The MTL 452 ACD industrial vacuum cleaner has been designed to safely vacuum combustible dust in unclassified areas where ATEX certification is not required.
The two single-phase bypass motors guarantee a high suction performance for non-continuous applications and less than 3 hours a day. Equipped with antistatic polyester filter and convenient hand shaker, large AISI 304 stainless steel release container and accessory kit included.

ADVANTAGES

  • Largest surface filter in its category
  • Complete steel construction
  • Compact and mobile
  • Easy filter replacement
  • Stainless steel AISI304 collection tank
  • ACD classification for vacuuming of combustible dust in non-classified areas
  • Release container

DATASHEET

Index UnitMTL 452 ACD
VoltageV - Hz230 - 50 1~
Power kW2,3
Max water liftmmH₂O2500
Max air flowm³/h360
Suction inletmm80
Noise level (EN ISO 3744)dB(A)74
Marking
Filter TypeStar
Surface - Diametercm²-mm20.000-420
Material - EfficiencyIEC 60335-2-69
Secondary filterHEPA
Transport capacitykg/h45
Dimensionscm58x63x130h
Weightkg56
Download MTL 452 ACDDownload technical sheet

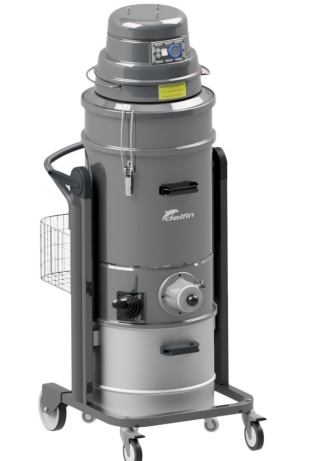

MTL 451 1/2D
ATEX-CERTIFIED INDUSTRIAL VACUUM CLEANER FOR INTERNAL 20 ZONE AND EXTERNAL 21 ZONE

  • Electronics
ATEX certified industrial vacuum cleaner for internal 20 zone and external 21 zone

Equipped with double ATEX certification, this vacuum cleaner allows you to vacuum dust and solids in total safety in working environments with high explosion risks. The powerful brushless motor, free from routine maintenance and protected by the new safety enclosure, makes it perfect for continuous activities.
The double filtration level, that is the antistatic polyester filter M and the standard absolute filter, guarantees the maximum filtration performance and at the same time protects the engine preventing explosion risks.
Equipped with large stainless steel AISI304 container while the grounding is carried out with the power cord.

ADVANTAGES

  • Complete steel construction
  • Compact and mobile
  • Easy filter replacement
  • Stainless steel AISI304 collection tank
  • Easy to clean and to maintain
  • Accessory kit included
  • High efficiency filtration
  • ATEX Certified Z20 internal (filtering chamber) / Z21 external

DATASHEET

Index UnitMTL 451 1/2D
Atex zonesATEX Z20/21 Z1-2
VoltageV - Hz115/230 - 50/60 1~
Power kW1,1
Max water liftmmH₂O2.250
Max air flowm³/h215
Suction inletmm80
Noise level (EN ISO 3744)dB(A)74
Marking
Filter TypeStar
Material - EfficiencyIEC 60335-2-69
Cleaning systemManual
Collection tank
Transport capacitykg/h45
Dimensionscm58x62x138h
Weightkg57
Download MTL 451 1/2DDownload technical sheet
