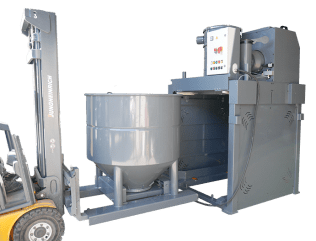

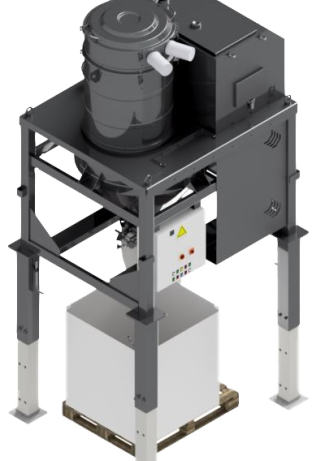

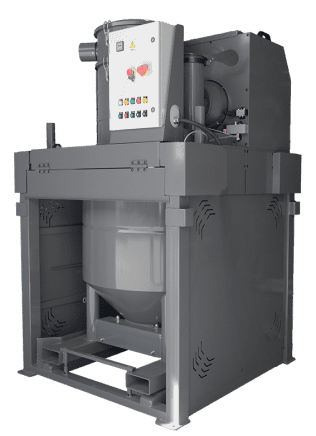

COMPACT HOPPER
HIGH POWER INDUSTRIAL VACUUM CLEANER WITH LOBE PUMP

  • Steelworks and Foundries
  • Ceramics and pottery industries

High-performance compact suction unit for heavy industry, movable by forklift. Equipped with 3-lobe rotary pump.
Large area pocket filter with mechanical cleaning by pneumatic piston.

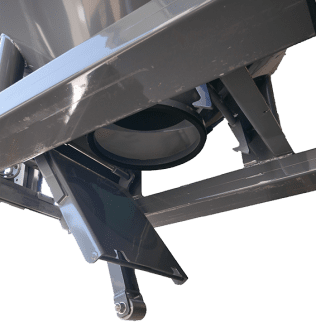

Conical 1000-liter hopper with manual butterfly valve D.250 mm.
Telescopic legs for lifting by forklift (optional). On-board compressor for filter cleaning.

ADVANTAGES

  • Integrated automatic filter cleaning system
  • Sturdy vacuum cleaner for intensive use
  • Powerful lobe pump with electric motor
  • High performances and long-lasting equipment
  • High efficiency filtration

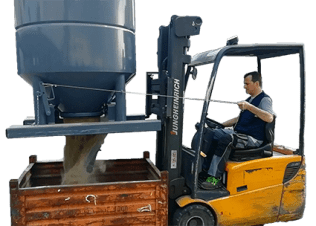

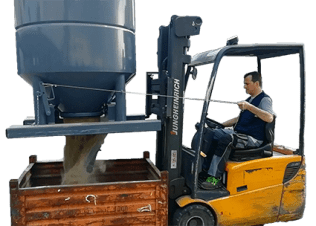

  • Discharge system by means of a valve
  • Great autonomy of the system

DATASHEET

Index UnitCOMPACT 22 HOPPERCOMPACT 30 HOPPERCOMPACT 37 HOPPER
Power kW223037
Electrical protectionIP555555
Max water liftmmH₂O5.000 - 7.5005.0005.000 - 7.200
Max air flowm³/h1.100 - 1.3001.7001.500 - 2.000
Suction inletmm127127127
Filter TypeStarStarStar
Cleaning systemAutomaticAutomaticAutomatic
Secondary filterCartridgeCartridgeCartridge
Transport capacitykg/h1.0001.0001.000
Dimensionscm202x172x359/435h202x172x359/435h202x172x359/435h
Weightkg1.3601.4601.600
