452 DS AIR
COMPRESSED AIR INDUSTRIAL VACUUM CLEANER FOR DUST, SOLIDS AND LIQUIDS

  • Shipyards
  • Chemical-pharmaceutical
  • Metalworking

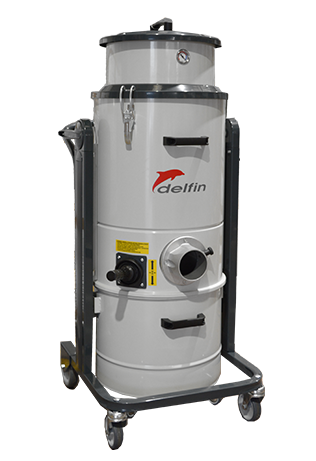

The 452DS AIR compressed air industrial vacuum cleaner is the ideal solution for vacuuming dust, and solids mixed with liquids in places where compressed air is preferable to electric energy. A powerful air-driven Venturi units wiuth 7 or 14 nozzles, which is maintenance-free, generates suction. Large-surface polyester filter with handy manual shaker and 45 litre detachable container with the option of using bags. Also available in electric version.

ADVANTAGES

  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • Compact and mobile
  • High filtration efficiency
  • Compressed air supply through a double Venturi suction unit
  • Large surface antistatic filter
  • Low noise level
  • Easy to handle

DATASHEET

Index Unit452 AIR 14V452 AIR 7V
Air supplyl / min1458729
Air supply pressurebar66
Ø Air supply hosemm1212
Max water liftmmH₂O37003700
Max air flowm³/h300150
Noise level (EN ISO 3744)dB(A)6868
Filter TypeStarStar
Surface - Diametercm²-mm20.000 - 42020.000 - 420
Material - EfficiencyIEC 60335-2-69Polyester - ANT MPolyester - ANT M
Cleaning systemManualManual
Capacitylt4545
Dimensionscm58x63x119h58x63x119h
Weightkg4946
Download 452 AIR 14VDownload technical sheet
Download 452 AIR 7VDownload technical sheet

OTHER SETUPS

352DS AIREX
ATEX CERTIFIED COMPRESSED AIR INDUSTRIAL VACUUM CLEANER FOR ZONES 1, 2, 21, 22

  • Shipyards
  • Sand blasting

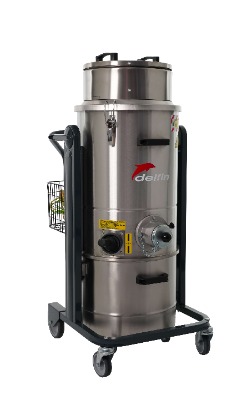

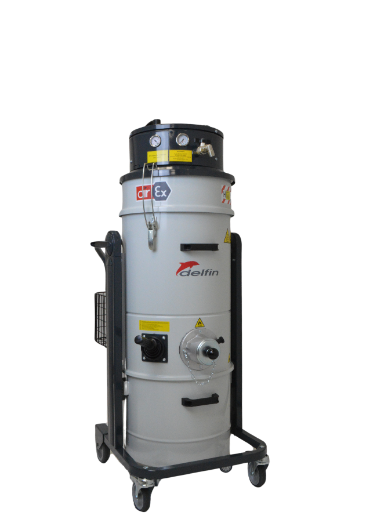

ATEX CERTIFIED COMPRESSED AIR INDUSTRIAL VACUUM CLEANER FOR ZONES 1, 2, 21, 22 352 DS AIREX

2GD certification for maximum safety when cleaning Atex zones 1, 2, 21, 22. Antistatic filters, 100% construction in AISI304 stainless steel, and complete grounding make this industrial compressed air vacuum cleaner for dust ideal for applications of all kinds of explosion hazard zones. Available with 7 or 14 nozzles Venturi unit.

ADVANTAGES

  • Heavy duty steel construction
  • Compact and mobile
  • High filtration efficiency
  • Compressed air supply through a double Venturi suction unit
  • Certificate for use in ATEX 1,2,21 and 22 areas
  • High efficiency Ventury system despite low energy consumption
  • Sturdy vacuum cleaner for intensive use
  • High efficiency filtration
  • Low noise level

DATASHEET

Index Unit352 AIREX 7V352 AIREX 14V
Atex zonesATEX Z1-2/21-22ATEX Z1-2/21-22
MarkingEx II 2D Ex h IIIC T85°C Db - Ex ll 2G Ex h IIB T6 GbEx II 2D Ex h IIIC T85°C Db - Ex ll 2G Ex h IIB T6 Gb
Air supplyl / min7291458
Air supply pressurebar66
Ø Air supply hosemm1212
Max water liftmmH₂O37003700
Max air flowm³/h150300
Suction inletmm8080
Noise level (EN ISO 3744)dB(A)6868
Filter TypeStarStar
Surface - Diametercm²-mm20.000 - 42020.000 - 420
Material - EfficiencyIEC 60335-2-69Polyester - ANT MPolyester - ANT M
Cleaning systemManualManual
Transport capacitykg/h4545
Dimensionscm70x55x127h70x55x127h
Weightkg5050
Download 352 AIREX 7VDownload technical sheet
Download 352 AIREX 14VDownload technical sheet
