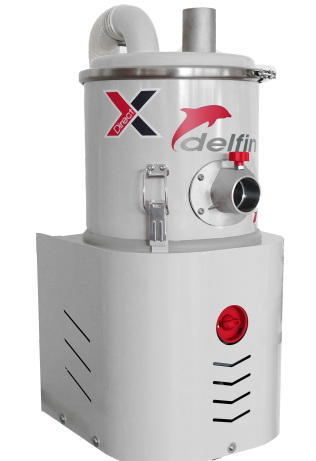

DBFV Z22
FIXED EXTRACTION UNIT FOR MACHINERY: COMPACT AND MODULAR SOLUTION FOR INDUSTRIAL ENVIRONMENTS

  • Food Industry
  • OEM Original Equipment Manufacturers
  • Cement
  • Chemical-pharmaceutical
  • Coffee , tea, tobacco processing

The fixed extraction unit for machinery is designed for direct extraction of dust and fumes during production. With a compact and vertical construction, it is made of steel to ensure robustness and long-lasting durability. The M-class filter with manual cleaning system and H14 ensures effective dust separation. Equipped with a maintenance-free motor and modularity, it is ideal for 24/7 applications and integration into OEM machinery and production lines. The side channel blower and Ex-certified control box provide safety in environments with explosive dust risks. An excellent solution for continuous and efficient extraction.

ADVANTAGES

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Integrated filter cleaning system
  • Complete steel construction
  • Pressure relief valve for motor protection
  • Low noise level
  • Easy filter replacement
  • Reduced downtime of machine tools
  • Possibility of integration on other vacuum cleaners
  • Modularity is guaranteed to fulfil the client's needs
  • Full customization for specific needs
  • Long lasting
  • ATEX-certified Z22

DATASHEET

Index UnitDBFV 05 Z22DBFV 20 Z22DBFV 30 Z22DBFV 10 Z22
Power kW0,42,2 - 4,62,2 - 4,60,85 - 0,75
Electrical protectionIP55/F656565
Max water liftmmH₂O15003.0002.6002.000
Max air flowm³/h100270318150
Suction inletmm50505050
Noise level (EN ISO 3744)dB(A)65697069
MarkingII 3D Ex h tc IIIC T80°C (int) / T165°C (ext) Dc*** DOUBLE CLICK TO EDIT THIS TEXT ****** DOUBLE CLICK TO EDIT THIS TEXT ***Ex II3D Ex IIIC T125°C DC
Atex zones3D (20 int/22 ext)3D (20 int/22 ext)3D (20 int/22 ext)3D (20 int/22 ext)
Filter TypeBagStarStarBag
Transport capacitykg/h15252515
Dimensionscm50x33x73h54x55x103h54x55x103h50x33x73h
Weightkg30456035
Cleaning systemManualManual
Download DBFV 05 Z22Download technical sheet
Download DBFV 20 Z22Download technical sheet
Download DBFV 30 Z22Download technical sheet
Download DBFV 10 Z22Download technical sheet
