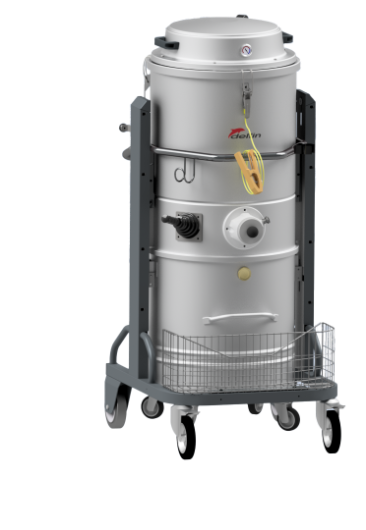

DM3 AIR
COMPRESSED AIR INDUSTRIAL VACUUM CLEANER FOR DUST, SOLIDS AND LIQUIDS
The DM3 AIR compressed air industrial vacuum cleaner is the ideal solution for sucking up dust, and solids mixed with liquids in places where compressed air is preferable to electric energy and where high powered suction is needed. 2 potent, compressed air-driven Venturi units, with no need for routine maintenance, generate the suction. The high capacity polyester filter with handy manual filter shaker guarantees an excellent level of filtration. The large 100 litre detachable container ensures there’s plenty of collection capacity. Also available in electric version.
ADVANTAGES
- Largest surface filter in its category
- Integrated filter cleaning system
- Complete steel construction
- Extractable collection container with optional use of disposable bags
- Low noise level
- High filtration efficiency
- Powerful suction thanks to a multi-nozzle venturi unit
DATASHEET
Index | Unit | DM3 AIR HD 19V | DM3 AIR HD 25V |
---|---|---|---|
Air supply | nlt / min | 1530 | 2500 |
Air supply pressure | bar | 6 | 6 |
Ø Air supply hose | mm | 12 | 12 |
Max water lift | mmH₂O | 5000 | 5000 |
Max air flow | m³/h | 465 | 590 |
Suction inlet | mm | 80 | 80 |
Noise level (EN ISO 3744) | dB(A) | 74 | 74 |
Filter Type | Star | Star | |
Surface - Diameter | cm²-mm | 30000 - 500 | 30000 - 500 |
Material - Efficiency | IEC 60335-2-69 | Polyester - ANT M | Polyester - ANT M |
Cleaning system | Manual | Manual | |
Discharge system | |||
Capacity | l | 100 | 100 |
Dimensions | cm | 62x62x160h | 62x62x160h |
Weight | kg | 80 | 80 |
Download technical sheet | Download technical sheet |
OTHER SETUPS
DM AIREX 1/3D
ATEX CERTIFIED COMPRESSED AIR INDUSTRIAL VACUUM CLEANER FOR INTERNAL 20 ZONE AND EXTERNAL 22 ZONE
The double ATEX certification for internal 20 zone and external 22 zone makes it perfect for continuous and heavy applications in medium explosion risk areas.
Power is generated by two powerful, maintenance-free venturs, 19 or 25 nozzles with an exceptional ratio of air consumption to performance.
ADVANTAGES
- Complete steel construction
- Extractable collection container with optional use of disposable bags
- Compact and mobile
- Easy filter replacement
- Compressed air supply through a single Venturi suction unit
- Earth grounding
- Stainless steel filter chamber and container
- Powerful suction thanks to a multi-nozzle venturi unit
- ATEX Certified Z20 internal (filtering chamber) / Z22 external
DATASHEET
Index | Unit | DM AIREX 25V 1/3D | DM AIREX 19V 1/3D |
---|---|---|---|
Atex zones | |||
Marking | 1/3D Ex h IIIC T80°C Da/Dc | 1/3D Ex h IIIC T80°C Da/Dc | |
Air supply | nlt / min | 2.500 | 1.530 |
Air supply pressure | bar | 6 | 6 |
Ø Air supply hose | mm | 12 | 12 |
Max water lift | mmH₂O | 5.000 | 5.000 |
Max air flow | m³/h | 590 | 465 |
Suction inlet | mm | 80 | 80 |
Noise level (EN ISO 3744) | dB(A) | 74 | 74 |
Filter Type | Star | Star | |
Surface - Diameter | cm²-mm | 30.000 - 500 | 30.000 - 500 |
Material - Efficiency | IEC 60335-2-69 | Polyester - ANT M | Polyester - ANT M |
Cleaning system | Manual | Manual | |
Additional standard filter | HEPA | HEPA | |
Capacity | l | 100 | 100 |
Dimensions | cm | 62X62X160h | 62X62X160h |
Weight | kg | 80 | 80 |
Download technical sheet | Download technical sheet |
DM AIREX 1/2D - 2/2G
COMPRESSED AIR INDUSTRIAL VACUUM CLEANER FOR INTERNAL 20 ZONE AND EXTERNAL 21 ZONE
The double ATEX certification, the antistatic filters and the standard absolute filter make it the ideal vacuum cleaner to efficiently and safely remove dust, solids and gases, such as hydrogen and acetylene, in areas at high risk of explosion.
Power is generated by two powerful, maintenance-free, 19 or 25-nozzle venturi units with an exceptional air consumption-performance ratio, perfect for continuous and heavy-duty applications.
ADVANTAGES
- Complete steel construction
- Extractable collection container with optional use of disposable bags
- Compact and mobile
- Easy filter replacement
- Earth grounding
- Powerful suction thanks to a multi-nozzle venturi unit
- ATEX Certified Z20 internal and Z21 external, suitable for gas suction in Zone 1 and 2
- Filter chamber, container, and head in stainless steel AISI304.
DATASHEET
Index | Unit | DM AIREX 25V 1/2D - 2/2G | DM AIREX 19V 1/2D - 2/2G |
---|---|---|---|
Atex zones | |||
Marking | II 1/2D Ex h IIIC T85° Da/Db - II 2/2G Ex h IIB T6 Gb/Gb | II 1/2D Ex h IIIC T85° Da/Db - II 2/2G Ex h IIB T6 Gb/Gb | |
Air supply | nlt / min | 2.500 | 1.530 |
Air supply pressure | bar | 6 | 6 |
Ø Air supply hose | mm | 12 | 12 |
Max water lift | mmH₂O | 5.000 | 5.000 |
Max air flow | m³/h | 590 | 465 |
Suction inlet | mm | 80 | 80 |
Noise level (EN ISO 3744) | dB(A) | 74 | 74 |
Filter Type | Star | Star | |
Surface - Diameter | cm²-mm | 30.000 - 500 | 30.000 - 500 |
Material - Efficiency | IEC 60335-2-69 | Polyester - ANT M | Polyester - ANT M |
Cleaning system | Manual | Manual | |
Additional standard filter | HEPA | HEPA | |
Capacity | l | 100 | 100 |
Dimensions | cm | 62X62X160h | 62X62X160h |
Weight | kg | 80 | 80 |
Download technical sheet | Download technical sheet |
