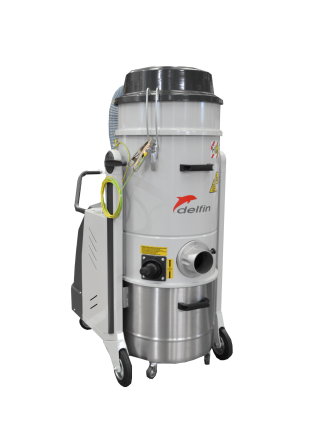

MTL 3533 EX
COMPACT AND POWERFUL THREE-PHASE SYSTEM WITH ATEX CERTIFICATION AND SIDE CHANNEL BLOWER

  • OEM Original Equipment Manufacturers
  • Cement
  • Chemical-pharmaceutical

The MTL 3533 EX is a three-phase dust extraction system with a side channel blower, designed for ATEX applications. This compact, stable, and easily transportable system is made of stainless steel for durability and strength. It includes an M-class antistatic filter and an H14 absolute filter for optimal protection. With an Ex-certified side channel blower and a dust-tight control panel, the system provides safety in explosion-risk environments. ATEX accessories and non-metallic components have been tested to ensure reliability.

ADVANTAGES

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Integrated filter cleaning system
  • Pressure relief valve for motor protection
  • Compact and mobile
  • ATEX certified for Zone 20 inside the chamber and for Zone 21 outside the chamber
  • Conceived for fine and hazardous dust suction
  • Additional HEPA filter (99,995% on 0,18 micron) included
  • Stainless steel AISI304 collection tank
  • ATEX accessories and non-metallic parts tested
  • Compliant with EN 17348: DRY TYPE

DATASHEET

Index UnitMTL 3533 EX1/2D
Power kW4
Electrical protectionIP65
Max water liftmmH₂O2.600
Max air flowm³/h320
Suction inletmm80
Noise level (EN ISO 3744)dB(A)69
MarkingII 1/2 D Ex h IIIC T160°C Da/Db
Atex zones1/2D (20 int/21 ext)
Filter TypeStar
Cleaning systemManual
Secondary filterHEPA
Collection tank
Capacityl45
Dimensionscm93x58x116h
Weightkg85
Download MTL 3533 EX1/2DDownload technical sheet
