802WD AIR
COMPRESSED AIR INDUSTRIAL VACUUM CLEANER

  • Food Industry
  • Shipyards
  • Chemical-pharmaceutical
  • Electronics
  • Packaging
  • Metalworking
  • Optics
  • Plastics
  • Waste treatment - Recycling
  • Textile
  • Finishing

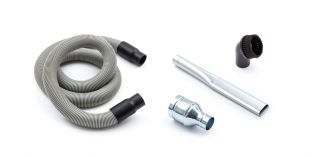

The 802WD AIR compressed air industrial wet/dry vacuum cleaner is the ideal solution for suctioning large quantities of liquids in places where electricity is not available or not recommended.  2 powerful, maintenance-free, air-powered 7-nozzle Venturi units that generate a vacuum, the large liquid collection capacity of the steel container and the easy handling of the vacuum cleaner make it the ideal solution for applications with all types of liquids. A convenient discharge valve at the back makes emptying the container quick and easy. Accessory kit included and double filtration kit for liquid (polypropylene filter) and dust (polyester filter) and float kit for automatic stop of suction when the container is full.Also available in Atex certified version, for collecting flammable liquids.

ADVANTAGES

  • Complete steel construction
  • Vacuum gauge to detect filter clogging
  • Compact and mobile
  • Easy filter replacement
  • PPL filter for chips separation
  • Floating device to stop the suction when container is full
  • Discharge hose for liquids
  • Compressed air supply through a single Venturi suction unit
  • Compressed air supply through a double Venturi suction unit

DATASHEET

Index Unit802 WD AIR 2V802 WD AIR 1V
Air supplyl / min30001500
Air supply pressurebar66
Ø Air supply hosemm1616
Max water liftmmH₂O41804180
Max air flowm³/h300150
Suction inletmm8080
Noise level (EN ISO 3744)dB(A)7373
Filter TypeBagBag
Surface - Diametercm²-mm8.000 - 4208.000 - 420
Material - EfficiencyIEC 60335-2-69Nylon + Polyester - LNylon + Polyester - L
Discharge systemDischarge hose
Capacitylt8080
Dimensionscm53x59x100h53x59x100h
Weightkg3333
Download 802 WD AIR 2VDownload technical sheet
Download 802 WD AIR 1VDownload technical sheet

OTHER SETUPS

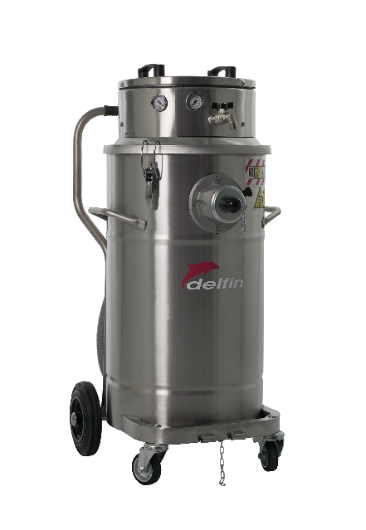

802W AIREX
ATEX CERTIFIED COMPRESSED AIR VACUUM CLEANERS FOR THE EXTRACTION OF FLAMMABLE LIQUIDS

  • Chemical-pharmaceutical
ATEX CERTIFIED COMPRESSED AIR VACUUM CLEANERS FOR THE EXTRACTION OF FLAMMABLE LIQUIDS 802 W AIREX

1/2G certification for use in Atex zones, compressed air supply, antistatic filtration, stainless steel construction. Vacuuming flammable liquids in ATEX zones 1 and 2 is no longer a danger thanks to this ATEX certified vacuum cleaner, for internal zone 0 and external zones 1 and 2 .

ADVANTAGES

  • Compact and mobile
  • Easy filter replacement
  • Floating device to stop the suction when container is full
  • Discharge hose for liquids
  • Compressed air supply through a double Venturi suction unit
  • Earth grounding
  • Certified for flammable liquid suction

DATASHEET

Index Unit802 WET AIREX 1-2G
Atex zonesATEX Z0/1-2
Markingll 1/2G c IIB T6 Ga/Gb
Air supplyl / min3.000
Air supply pressurebar6
Ø Air supply hosemm10
Max water liftmmH₂O4.180
Max air flowm³/h300
Suction inletmm80
Noise level (EN ISO 3744)dB(A)73
Filter TypeCartidge + Activated carbon
Surface - Diametercm²-mm1.600 - 290
Material - EfficiencyIEC 60335-2-69AISI316 Stainless steel - 10 micron
Capacitylt80
Dimensionscm62x53x108h
Weightkg36
Download 802 WET AIREX 1-2GDownload technical sheet

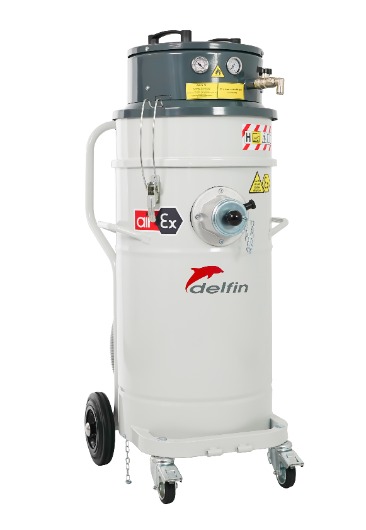

802WD AIREX
ATEX CERTIFIED COMPRESSED AIR WET & DRY VACUUM CLEANERS FOR ZONES 1, 2, 21, 22

  • OEM Original Equipment Manufacturers
  • Electronics
  • Packaging
  • Optics
  • Plastics
  • Textile
  • Finishing
ATEX CERTIFIED COMPRESSED AIR WET & DRY VACUUM CLEANERS FOR ZONES 1, 2, 21, 22 802 WD AIREX

2GD certification for maximum safety when cleaning Atex zones 1, 2, 21, 22. The antistatic filters and 100% construction in AISI304 stainless steel make it the ideal compressed air vacuum cleaner for applications in explosion hazard zones.

ADVANTAGES

  • Complete steel construction
  • Vacuum gauge to detect filter clogging
  • Compact and mobile
  • Easy filter replacement
  • PPL filter for chips separation
  • Floating device to stop the suction when container is full
  • Discharge hose for liquids
  • Compressed air supply through a single Venturi suction unit
  • Compressed air supply through a double Venturi suction unit
  • Earth grounding
  • Certificate for use in ATEX 1,2,21 and 22 areas

DATASHEET

Index Unit802 WD AIREX 1V802 WD AIREX 2V
Atex zonesATEX Z1-2/21-22ATEX Z1-2/21-22
MarkingEx II 2D Ex h IIIC T85°C Db - Ex ll 2G Ex h IIB T6 GbEx II 2D Ex h IIIC T85°C Db - Ex ll 2G Ex h IIB T6 Gb
Air supplyl / min15003000
Air supply pressurebar66
Ø Air supply hosemm1016
Max water liftmmH₂O41804180
Max air flowm³/h150300
Suction inletmm8080
Noise level (EN ISO 3744)dB(A)7373
Filter TypeBagBag
Surface - Diametercm²-mm8.000 - 4208.000 - 420
Material - EfficiencyIEC 60335-2-69Polyester - ANT MPolyester - ANT M
Capacitylt8080
Dimensionscm62x53x108h62x53x108h
Weightkg3536
Download 802 WD AIREX 1VDownload technical sheet
Download 802 WD AIREX 2VDownload technical sheet

802WD AIR 7V
COMPRESSED AIR INDUSTRIAL VACUUM CLEANER

  • Food Industry
  • Shipyards
  • Chemical-pharmaceutical
  • Metalworking

The 802WD AIR 7V compressed air industrial wet/dry vacuum cleaner is the ideal solution for suctioning large quantities of liquids in places where electricity is not available or not recommended. One powerful, maintenance-free, air-powered 7-nozzle Venturi unit that generate a vacuum, the large liquid collection capacity of the steel container and the easy handling of the vacuum cleaner make it the ideal solution for applications with all types of liquids. A convenient discharge valve at the back makes emptying the container quick and easy. Accessory kit included and double filtration kit for liquid (polypropylene filter) and dust (polyester filter) and float kit for automatic stop of suction when the container is full.Also available in Atex certified version, for collecting flammable liquid

ADVANTAGES

  • Complete steel construction
  • Vacuum gauge to detect filter clogging
  • Compact and mobile
  • Easy filter replacement
  • PPL filter for chips separation
  • Floating device to stop the suction when container is full
  • Discharge hose for liquids
  • Powerful suction thanks to a multi-nozzle venturi unit

DATASHEET

Index Unit802 WD AIR 7V
Air supplyl / min729
Air supply pressurebar6
Ø Air supply hosemm10
Max water liftmmH₂O3700
Max air flowm³/h150
Suction inletmm80
Noise level (EN ISO 3744)dB(A)68
Filter TypeBag
Surface - Diametercm²-mm8.000 - 420
Material - EfficiencyIEC 60335-2-69Nylon + Polyester - L
Discharge system
Capacitylt80
Dimensionscm53x59x100h
Weightkg30
Download 802 WD AIR 7VDownload technical sheet

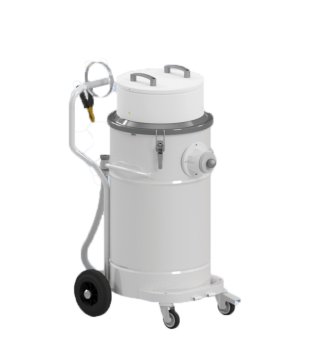

802 WD AIR 14V
COMPRESSED AIR INDUSTRIAL VACUUM CLEANER

  • Food Industry
  • Shipyards
  • Chemical-pharmaceutical
  • Metalworking
802 wd air 14v

The 802WD AIR 14V compressed air industrial wet/dry vacuum cleaner is the ideal solution for suctioning large quantities of liquids in places where electricity is not available or not recommended. One powerful, maintenance-free, air-powered 14-nozzle Venturi unit that generate a vacuum, the large liquid collection capacity of the steel container and the easy handling of the vacuum cleaner make it the ideal solution for applications with all types of liquids.
A convenient discharge valve at the back makes emptying the container quick and easy. Accessory kit included and double filtration kit for liquid (polypropylene filter) and dust (polyester filter) and float kit for automatic stop of suction when the container is full.Also available in Atex certified version, for collecting flammable liquid.

ADVANTAGES

  • Complete steel construction
  • Vacuum gauge to detect filter clogging
  • Compact and mobile
  • Easy filter replacement
  • PPL filter for chips separation
  • Floating device to stop the suction when container is full
  • Discharge hose for liquids
  • Powerful suction thanks to a multi-nozzle venturi unit

DATASHEET

Index Unit802 WD AIR 14V
Air supplyl / min1458
Air supply pressurebar6
Ø Air supply hosemm10
Max water liftmmH₂O3700
Max air flowm³/h150
Suction inletmm80
Noise level (EN ISO 3744)dB(A)68
Filter TypeBag
Surface - Diametercm²-mm8.000 - 420
Material - EfficiencyIEC 60335-2-69Nylon + Polyester - L
Discharge system
Capacitylt80
Dimensionscm53x59x100h
Weightkg33
Download 802 WD AIR 14VDownload technical sheet

802WD AIREX 7V
ATEX CERTIFIED COMPRESSED AIR WET & DRY VACUUM CLEANERS FOR ZONES 1, 2, 21, 22

  • Shipyards
  • Electronics
  • Packaging

2GD certification for safe use in Atex zones 1, 2, 21, 22. The antistatic filters and complete AISI304 stainless steel construction make it the ideal compressed air vacuum cleaner with 7-nozzle venturi unit for applications in hazardous areas.

ADVANTAGES

  • Vacuum gauge to detect filter clogging
  • Compact and mobile
  • Easy filter replacement
  • Floating device to stop the suction when container is full
  • Discharge hose for liquids
  • Compressed air supply through a double Venturi suction unit
  • Earth grounding
  • Certificate for use in ATEX 1,2,21 and 22 areas

DATASHEET

Index Unit802 WD AIREX 7V
Atex zonesATEX Z1-2/21-22
MarkingEx II 2D Ex h IIIC T85°C Db - Ex ll 2G Ex h IIB T6 Gb
Air supplyl / min729
Air supply pressurebar6
Ø Air supply hosemm10
Max water liftmmH₂O3700
Max air flowm³/h150
Suction inletmm80
Noise level (EN ISO 3744)dB(A)68
Filter TypeBag
Surface - Diametercm²-mm8.000 - 420
Material - EfficiencyIEC 60335-2-69Polyester - ANT M
Transport capacitykg/h80
Dimensionscm62x53x108h
Weightkg36
Download 802 WD AIREX 7VDownload technical sheet

802WD AIREX 14V
ATEX CERTIFIED COMPRESSED AIR WET & DRY VACUUM CLEANERS FOR ZONES 1, 2, 21, 22

  • Shipyards
  • Packaging

2GD certification for safe use in Atex zones 1, 2, 21, 22. The antistatic filters and complete AISI304 stainless steel construction make it the ideal compressed air vacuum cleaner with 14-nozzle venturi unit for applications in hazardous areas.

ADVANTAGES

  • Vacuum gauge to detect filter clogging
  • Compact and mobile
  • Easy filter replacement
  • Floating device to stop the suction when container is full
  • Discharge hose for liquids
  • Compressed air supply through a double Venturi suction unit
  • Earth grounding
  • Certificate for use in ATEX 1,2,21 and 22 areas

DATASHEET

Index Unit802 WD AIREX 14V
Atex zonesATEX Z1-2/21-22
MarkingEx II 2D Ex h IIIC T85°C Db - Ex ll 2G Ex h IIB T6 Gb
Air supplyl / min1458
Air supply pressurebar6
Ø Air supply hosemm10
Max water liftmmH₂O3700
Max air flowm³/h300
Suction inletmm80
Noise level (EN ISO 3744)dB(A)68
Filter TypeBag
Surface - Diametercm²-mm8.000 - 420
Material - EfficiencyIEC 60335-2-69Polyester - ANT M
Capacitylt80
Dimensionscm62x53x108h
Weightkg36
Download 802 WD AIREX 14VDownload technical sheet
