1. Industrial vacuum cleaners
  2. Single-phase vacuum cleaner DM3

DM3
INDUSTRIAL VACUUM CLEANER PAR EXCELLENCE FOR GENERAL CLEANING

  • Ceramics and pottery industries
  • Chemical-pharmaceutical
  • Electronics
  • Wine
  • Leather working
  • Optics
  • Plastics
Industrial vacuum cleaner for fine dusts and solids

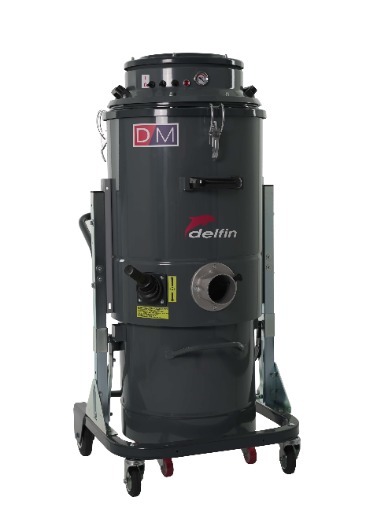

The DM3 is by far the best seller in Delfin’s high-powered line. 3 powerful single-phase motors, a large filter with 2m² surface area and 100 litre container make it suitable and safe for any industrial application involving dust, solids and liquids, also when mixed. State-of-the-art design and handy accessories compartment make it an all-purpose, easy-to-use tool. Also available with compressed air supply.

ADVANTAGES

  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • Three powerful by pass motors with independent cooling
  • Compact and mobile
  • Easy filter replacement

DATASHEET

Index UnitDM3
VoltageV - Hz230 - 50
Power kW3,45
Max waterliftmmH2O2.500
Max air flowm³/h540
Suction inletmm80
Noise level (EN ISO 3744)dB(A)76
Filter TypeStar
Surface - Diametercm²-mm20.000 - 500
Material - EfficiencyIEC 60335-2-69Polyester - L
Air load on filter m³/m²/h270
Cleaning systemManual
Discharge systemRoll-out container
Capacitylt.100
Dimensionscm77x66x150h
Weightkg85
Download DM3Download technical sheet

Watch the video

OTHER SETUPS

DM3 TUV
CERTIFIED INDUSTRIAL VACUUM CLEANER FOR FINE DUST EXTRACTION

  • Ceramics and pottery industries
  • Chemical-pharmaceutical
  • Electronics
  • Wine
  • Leather working
  • Optics
  • Plastics
CERTIFIED INDUSTRIAL VACUUM CLEANER FOR FINE DUST EXTRACTION DM3 TUV

After long and stringent testing, the DM3 achieved TÜV certification for the extraction of fine and/or toxic dust. In its certified configuration, the vacuum cleaner comes equipped with a large surface filter, antistatic suction hose and collection bags for toxic waste. The right industrial vacuum cleaner when it comes to removing fine and harmful dust from the workplace.

ADVANTAGES

  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • Three powerful by pass motors with independent cooling
  • Compact and mobile
  • Easy filter replacement
  • TUV certification of suitability for the suction of fine and toxic powders, in compliance with dust classes H (European standards DIN -EN 60335-2-69 / 2015 and IEC 60335-2-69 / 2012).

DATASHEET

Index UnitDM3 TUV MDM3 TUV H
VoltageV - Hz230 - 50230 - 50
Power kW3,453,45
Max waterliftmmH2O2.5002.500
Max air flowm³/h540540
Suction inletmm8080
Noise level (EN ISO 3744)dB(A)7676
Filter TypeStarStar
Surface - Diametercm²-mm20.000 - 50020.000 - 500
Material - EfficiencyIEC 60335-2-69Polyester - MPolyester - ANT M
Air load on filter m³/m²/h270270
Cleaning systemManualManual
Discharge systemRoll-out containerRoll-out container
Capacitylt.100100
Dimensionscm77x66x150h77x66x150h
Weightkg8585
Download DM3 TUV MDownload technical sheet
Download DM3 TUV HDownload technical sheet

DM3 PN
INDUSTRIAL VACUUM CLEANER FOR LARGE VOLUMES OF FINE CLOGGING DUST

  • Food Industry
  • Cement
  • Ceramics and pottery industries
  • Surface preparation
INDUSTRIAL VACUUM CLEANER FOR LARGE VOLUMES OF FINE CLOGGING DUST DM3 PN

Vacuum cleaner equipped with compressor and PN automatic filter cleaning system to ensure high suction performance at all times.

ADVANTAGES

  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • Vacuum gauge to detect filter clogging
  • Three powerful by pass motors with independent cooling
  • Large surface antistatic filter
  • Integrated automatic filter cleaning system

DATASHEET

Index UnitDM3 PN
VoltageV - Hz230 - 50
Power kW3,45
Max waterliftmmH2O2.500
Max air flowm³/h540
Suction inletmm80
Noise level (EN ISO 3744)dB(A)76
Filter TypeCartridge
Surface - Diametercm²-mm57.000 - 420
Material - EfficiencyIEC 60335-2-69Polyester - M
Air load on filter m³/m²/h94
Cleaning systemAutomatic PN
Discharge systemRoll-out container
Capacitylt.50
Dimensionscm58x85x145h
Weightkg165
Download DM3 PNDownload technical sheet

DM3 EL
INDUSTRIAL VACUUM CLEANER FOR ALL USES

  • Steelworks and Foundries
  • Food Industry
  • Aluminum and PVC
  • Cement
  • Wood
  • Optics
  • Plastics
  • Surface preparation
INDUSTRIAL VACUUM CLEANER FOR ALL USES DM3 EL

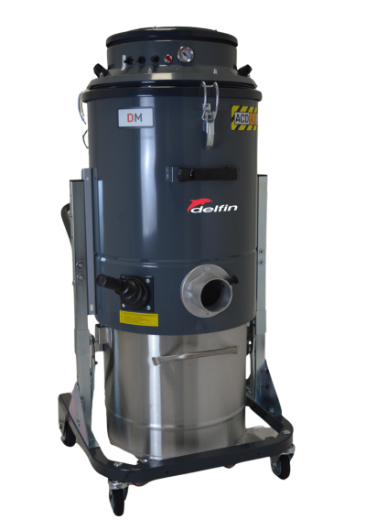

The DM3 EL is the compact version of the DM3. Same great suction power and same flexibility of use, but with a smaller 60 litre container, allowing for reduced height and better handling.

ADVANTAGES

  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Extractable collection container with optional use of disposable bags
  • Two powerful by pass motors with independent cooling
  • Three powerful by pass motors with independent cooling
  • Compact and mobile
  • Reduced downtime of machine tools
  • Full customization for specific needs

DATASHEET

Index UnitDM3 ELDM3 EL 2M
VoltageV - Hz230 - 50230 - 50
Power kW3,452,3
Max waterliftmmH2O2.5002.500
Max air flowm³/h540360
Suction inletmm8080
Noise level (EN ISO 3744)dB(A)7676
Filter TypeStarStar
Surface - Diametercm²-mm20.000 - 42020.000 - 420
Material - EfficiencyIEC 60335-2-69Polyester - LPolyester - L
Air load on filter m³/m²/h270180
Cleaning systemManualManual
Discharge systemRoll-out containerRoll-out container
Capacitylt.60-10060-100
Dimensionscm67x66x134h67x66x134h
Weightkg7070
Download DM3 ELDownload technical sheet
Download DM3 EL 2MDownload technical sheet

DM3 EL LP
INDUSTRIAL VACUUM CLEANER FOR THE SAFE COLLECTION OF FINE OR TOXIC DUST

  • Cement
  • Ceramics and pottery industries
  • Wood
INDUSTRIAL VACUUM CLEANER FOR THE SAFE COLLECTION OF FINE OR TOXIC DUST DM3 EL LP

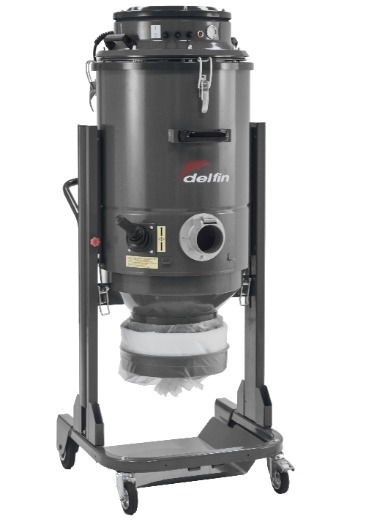

Power, easy disposal of the harmful material collected and portability are the strengths this industrial vacuum has to offer in fine dust extraction. The vacuum cleaner’s spring system means it can be transported in any standard van, while the Longopac safe bagging system ensures dust or toxic substances is removed from the construction site without workers being at risk of inhalation exposure.

ADVANTAGES

  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Three powerful by pass motors with independent cooling
  • Compact and mobile
  • Full customization for specific needs
  • Disposable bags for hazardous dusts safe disposal
  • Adjustable height to facilitate transport on vehicles

DATASHEET

Index UnitDM3 EL LONGOPAC
VoltageV - Hz230 - 50
Power kW3,45
Max waterliftmmH2O2.500
Max air flowm³/h540
Suction inletmm80
Noise level (EN ISO 3744)dB(A)76
Filter TypeStar
Surface - Diametercm²-mm20.000 - 500
Material - EfficiencyIEC 60335-2-69Polyester - L
Air load on filter m³/m²/h270
Cleaning systemManual
Discharge systemLongopac bag
Dimensionscm80x66x155h
Weightkg70
Download DM3 EL LONGOPACDownload technical sheet

Ask for a free quotation
