MTL 20.18
COMPACT INDUSTRIAL VACUUM CLEANER FOR SMALL CLEANING TASKS IN THE PHARMACEUTICAL INDUSTRY

  • OEM Original Equipment Manufacturers
  • Chemical-pharmaceutical
  • Coffee , tea, tobacco processing

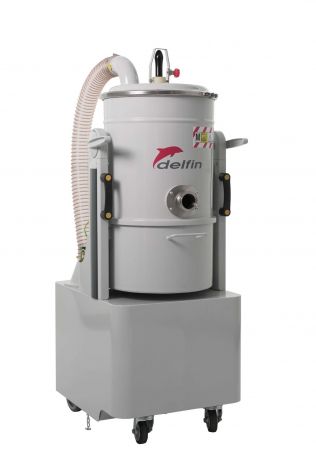

The MTL 20.18 industrial vacuum cleaner is a compact, silent and flexible unit designed for small, general, and on-board cleaning tasks within the pharmaceutical and chemical industries.
Manufactured in full compliance with GMP standards, it is an ideal vacuum cleaner for fine dust extraction, thanks to its antistatic polyester pocket filter, which guarantees a large filtering surface area and high resistance to dust passage. The filter is cleaned by an integrated ergonomic manual cleaning system. It is possible to install a HEPA filter able to filter dust down to 0.18 microns, with an efficiency up to 99.995%, to guarantee the purity of the air returned to the working environment.
The canister, with a collection capacity of up to 22 liters, can be easily emptied thanks to the release system. It is optionally available in AISI304 stainless steel polished on the inside to facilitate material flow and simplify cleaning. Disposable filter bags can be used to collect and dispose of the material safely.
A powerful side channel turbine with a vacuum limiting valve ensures even continuous use without maintenance need.
The unit is designed completely in painted steel and is also available with certification for ATEX 22 zones.

ADVANTAGES

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Pressure relief valve for motor protection
  • Low noise level
  • Compact, silent, and flexible vacuum cleaner, ideal for suction on-board of machinery
  • Star primary filter with integrated ergonomic cleaning system
  • Optional H14 absolute filter for air blowing safety
  • Possibility of using disposable safety bags for material collection and disposal

DATASHEET

Index UnitMTL 20.18
VoltageV - Hz400 - 50 3
Power kW1,8
Max water liftmmH₂O3000
Max air flowm³/h270
Suction inletmm50
Noise level (EN ISO 3744)dB(A)70
Filter TypeStar
Surface - Diametercm²-mm12.000 - 360
Material - EfficiencyIEC 60335-2-69Polyester - ANT M
Cleaning systemManual
Capacityl22
Dimensionscm69x51x129h
Weightkg75
Download MTL 20.18Download technical sheet
