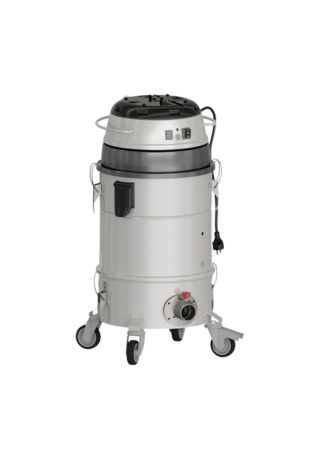

301 TORCH
VACUUM CLEANER FOR WELDING FUMES SUCTION

  • Building and construction
  • Electronics
  • Optics

Sturdy and easy to transport, TORCH industrial vacuum cleaner has been conceived to remove possible welding fumes from the source, by keeping fine dusts concentration to the extent permitted by law.

WELDING FUMES SUCTION

The suction of welding fumes in a mechanical workshop contributes to a healthier work environment, especially if directly at the source.
The suction at the source is the best way to collect and vacuum welding fumes and so to safeguard welder's health.
Torch 301 has a start and stop device which allows to power on/to stop the machine without the intervention of the welder, who will be free to only focus on using the welding torch.

ADVANTAGES

  • Compact and mobile
  • Easy filter replacement
  • Optional articulated arm to suction in a restricted area
  • Suction directly from the MIG/MAG welding torch

DATASHEET

Index Unit301 TORCH302 TORCH
VoltageV - Hz230 - 50230 - 50 1~
Power kW1,152,3
Max water liftmmH₂O2.5002500
Max air flowm³/h180360
Suction inletmm5050
Noise level (EN ISO 3744)dB(A)7476
PrefilterSpark trap filterSpark trap filter
Filter TypeCartridgeCartridge
Surface - Diametercm²-mm7.500 - 2457.500 - 245
Material - EfficiencyIEC 60335-2-69Polyester - MPolyester - M
Cleaning systemDustopDustop
Discharge system
Capacityl1313
Dimensionscm40x50x86h40x50x86h
Weightkg2525
Download 301 TORCHDownload technical sheet
Download 302 TORCHDownload technical sheet
