AS FIXE
WALL-MOUNTED INDUSTRIAL VACUUM FOR LOCALISED DISCHARGE

  • Cement works and construction industry
  • Ceramics and pottery industries
  • Wood

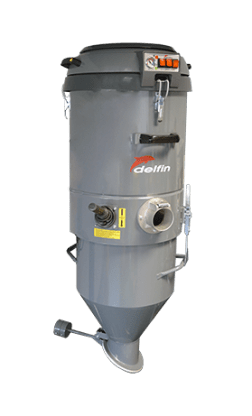

Industrial vacuum cleaner for localised suction and discharge AS FIXE

The AS FIXE industrial vacuum was created to respond to the need of large manufacturing companies to arm themselves with a powerful suction tool that could be installed near machines in operation on a permanent basis. The collection unit, which can be wall-mounted or fixed to a floor frame, has a weighted flap discharge system so that the collected material can be transported to a chosen point. Other types of automatic discharge are available for seamless integration into production lines. Powerful, maintenance-free, three-phase blower, large polyester filter with filter shaker for manual cleaning and built-in safety valve to protect the motor.

ADVANTAGES

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Largest surface filter in its category
  • Low noise level
  • Modularity is guaranteed to fulfil the client's needs
  • Full customization for specific needs
  • Long lasting
  • Balanced flap discharge system
  • Remote control switch

DATASHEET

Index UnitAS FIXE
VoltageV - Hz400 - 50
Power kW3
Max waterliftmmH2O3000
Max air flowm³/h350
Suction inletmm80
Noise level (EN ISO 3744)dB(A)75
Filter TypeStar
Surface - Diametercm²-mm20.000 - 500
Material - EfficiencyIEC 60335-2-69Polyester - L
Cleaning systemManual
Capacitylt.-
Dimensionscm58 x 55 x 175h
Weightkg60
Download AS FIXE

OTHER SETUPS

AS FIXE 3M
SINGLE-PHASE INDUSTRIAL VACUUM FOR LOCALISED DISCHARGE

  • Ceramics and pottery industries
  • Chemical-pharmaceutical
  • Electronics
  • Leather working
  • Wood

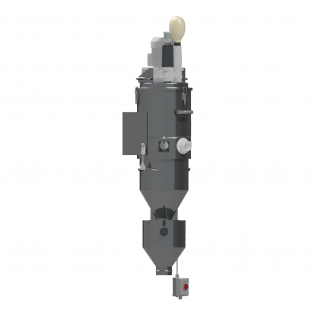

SINGLE-PHASE INDUSTRIAL VACUUM FOR LOCALISED DISCHARGE AS FIXE 3M

3 powerful single-phase motors create the suction vacuum. Ideal for non-continuous applications

ADVANTAGES

  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Complete steel construction
  • Three powerful by pass motors with independent cooling
  • Low noise level
  • Possibility of integration on other vacuum cleaners
  • Full customization for specific needs
  • Balanced flap discharge system
  • Remote control switch

DATASHEET

Index UnitAS FIXE 3M
VoltageV - Hz230 - 50
Power kW3,45
Max waterliftmmH2O2.500
Max air flowm³/h540
Suction inletmm80
Noise level (EN ISO 3744)dB(A)76
Filter TypeStar
Surface - Diametercm²-mm20.000 - 500
Material - EfficiencyIEC 60335-2-69Polyester - L
Cleaning systemManual
Capacitylt.-
Dimensionscm58x55x140h
Weightkg55
Download AS FIXE 3M
