Overview
Description

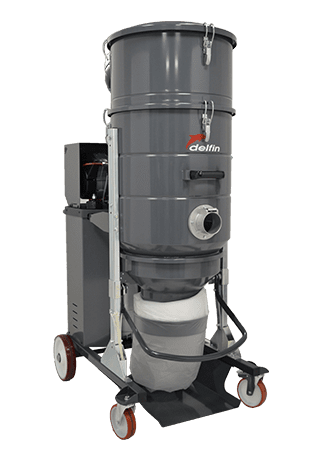

The DM3PN 3BP is the single-phase industrial vacuum cleaner for hazardous fine dust with automatic compressed air filter cleaning system PN, three PTFE class M cartridges, and a 60-liter container. Designed for surface preparation and all applications that generate fine dust, it offers the ideal combination of suction power, filtration efficiency, and operational continuity.
The automatic compressed air cleaning system PN, active during suction, keeps the three PTFE cartridges always clean, ensuring nominal air flow throughout the entire job without interruptions. The total filter surface of 57,000 cm² ensures a low specific load and long autonomy between maintenance intervals. The powerful single-phase motor of 3.45 kW delivers 540 m³/h of air flow and 2500 mmH2O vacuum.
The 60-liter container with quick-release system and sturdy wheeled structure make it easy to use on construction sites, mechanical workshops, and industrial environments. Available with H14 absolute filter for carcinogenic dust. Compliant with IEC EN 60335-2-69 standard for class M vacuum cleaners.
The automatic compressed air cleaning system PN, active during suction, keeps the three PTFE cartridges always clean, ensuring nominal air flow throughout the entire job without interruptions. The total filter surface of 57,000 cm² ensures a low specific load and long autonomy between maintenance intervals. The powerful single-phase motor of 3.45 kW delivers 540 m³/h of air flow and 2500 mmH2O vacuum.
The 60-liter container with quick-release system and sturdy wheeled structure make it easy to use on construction sites, mechanical workshops, and industrial environments. Available with H14 absolute filter for carcinogenic dust. Compliant with IEC EN 60335-2-69 standard for class M vacuum cleaners.
Features
Application
Fine dust
Footprint
Compact and mobile
Material
Complete painted steel construction
Filter
PTFE filter, class M with automatic filter cleaning system
Features
Endless Bag system for safe dust collection and adjustable
height to simplify transport on vans
Technical specs
Technical details
| Unit of measure | Data | |
|---|---|---|
| Voltage | V | 230 |
| Power | kW | 3.45 |
| Frequency | Hz | 50 |
| Current Draw | A | 15.00 |
| Inlet Diameter | mm | 80 |
| Bin Capacity | lt. | 60 |
| Noise Level (EN ISO 3744) | dB(A) | 70 |
| Dimensions | cm | 67x100x170 |
| Weight | Kg | 142 |
| Max Vacuum Rate | 2.500 | |
| Continuous Duty Vacuum | 2.500 | |
| Max Airflow | 540 | |
| Motor Type | Single-phase Bypass |
Certifications
Filter class
| Unit of measure | Data | |
|---|---|---|
| Primary Filter | Cartridge | |
| Number of cartridges | 3 | |
| Primary filter load | m³(m²/h) | 95 |
| Primary filter surface area | cm² | 57.000 |
| Primary filter media | Polyester | |
| Primary filter class (IEC 60335-2-69) | M PTFE | |
| Filter cleaning system | PN - Automatic compressed-air filter cleaning system during vacuuming | |
| HEPA absolute filter | Optional | |
| Absolute filter surface area | cm² | 26.000 |
| Absolute filter class (EN 1822-5) | H14 con 99,995% di efficienza secondo il metodo MPPS |
Certifications
Documentation
Publications
PDF, 169.41 KB
PDF, 368.31 KB
Accessories
Optionals
H
Additional H14 absolute filter
