Overview
Description

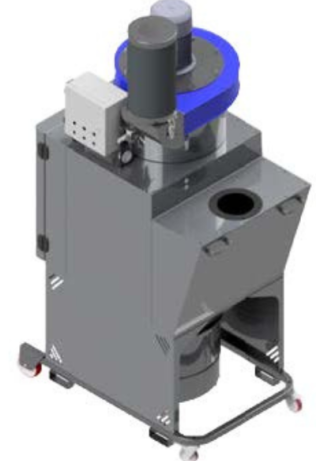

The ZEFIRO EV AP 560 PN Z22 II 3D K2 is the ATEX zone 22 certified industrial dust collector, 2.2 kW, with automatic compressed air filter cleaning system, designed for continuous dust removal in classified environments with intermittent presence of explosive dust. The combination of high air flow (2500 m³/h) with ATEX certification and PN automatic cleaning makes it the most complete solution for air management in classified production departments.
The ATEX II 3D Ex h tb IIIC Dc marking guarantees compliance for zone 22, while the PN system certifies the safety of automatic cleaning even in areas with explosive dust. The ANT M antistatic filter of 50,000 cm² ensures maximum filtration efficiency for a wide range of industrial dust. The electrical panel with 24V controls guarantees operational safety.
Certified by an accredited third party, compliant with UNI EN 17348:2022. Suitable for the production of composite materials, chemical, pharmaceutical, food industries and any process with high generation of fine dust in ATEX 22 classified areas. The PN automatic cleaning eliminates the need for manual filter maintenance, ideal for departments with continuous cycle work.
The ATEX II 3D Ex h tb IIIC Dc marking guarantees compliance for zone 22, while the PN system certifies the safety of automatic cleaning even in areas with explosive dust. The ANT M antistatic filter of 50,000 cm² ensures maximum filtration efficiency for a wide range of industrial dust. The electrical panel with 24V controls guarantees operational safety.
Certified by an accredited third party, compliant with UNI EN 17348:2022. Suitable for the production of composite materials, chemical, pharmaceutical, food industries and any process with high generation of fine dust in ATEX 22 classified areas. The PN automatic cleaning eliminates the need for manual filter maintenance, ideal for departments with continuous cycle work.
Features
Application
Fine dust suspended in the air, dust and chips with fixed suction on board the machine
Footprint
industrial construction with high durability and easy maintenance
with fork lift intakes included
Material
Complete painted steel construction
Filter
2 polyester class M cartridge filters with large filtering surface
and Hepa
Compliance
Filter cleaning: automatic filter cleaning system with compressed air
during suction.
Technical specs
Technical details
| Unit of measure | Data | |
|---|---|---|
| Zone | ATEX Zone: 20 Internal/22 External | |
| Ex Category | 1/3D (20 int/22 ext) | |
| Marking | II 1/3D Ex h IIIC T100°C (int) / T135°C (ext) Da/Dc | |
| Voltage | V | 400 |
| Power | kW | 4.00 |
| Frequency | Hz | 50 |
| Current Draw | A | 7.60 |
| Inlet Diameter | mm | 1 x 200 / 2 x 150 |
| Bin Capacity | lt. | 90 |
| Noise Level (EN ISO 3744) | dB(A) | 74 |
| Dimensions | cm | 135x89x255h |
| Weight | Kg | 250 |
| Electrical Protection Rating | IP | 65 |
| Max Vacuum Rate | 370 | |
| Continuous Duty Vacuum | 370 | |
| Max Airflow | 3.500 | |
| Motor Type | Electric fan |
Certifications
Filter class
| Unit of measure | Data | |
|---|---|---|
| Primary Filter | 2x cartridges | |
| Primary filter surface area | cm² | 200.000 |
| Primary filter media | Polyester | |
| Primary filter class (IEC 60335-2-69) | Teflon ANT M | |
| Filter cleaning system | PN - Automatic compressed-air filter cleaning system during vacuuming | |
| HEPA absolute filter | Standard | |
| Absolute filter class (EN 1822-5) | H14 con 99,995% di efficienza secondo il metodo MPPS |
Certifications
Documentation
Publications
PDF, 167.03 KB
PDF, 307.37 KB
Accessories
Accessories
TA.0177.0000
A: ø /ARM ø150 B: ø INLET FILTER CHAMBER / FILTER CHAMBER INLET ø150
TA.0511.0000
A: ø /ARM ø200 B: ø INLET FILTER CHAMBER / FILTER CHAMBER INLET ø200
Optionals
LOC-REM (ATEX+25%)
Remote control (with 24V electric panel if not present) +25% ATEX
MT
Earth Grounding
X
AISI 304 stainless steel container
