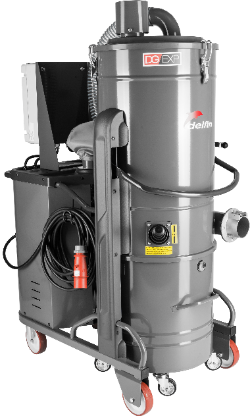

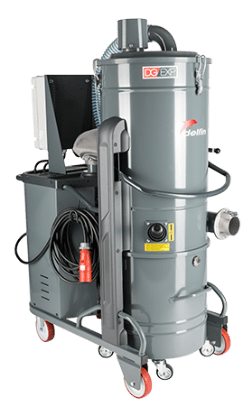

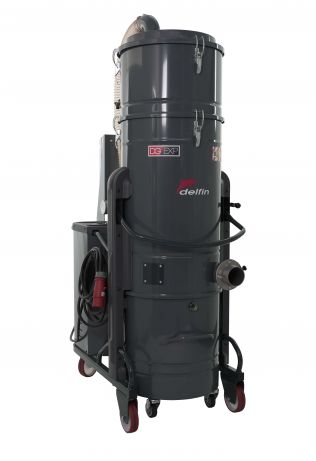

DG 75
COMPACT YET POWERFUL INDUSTRIAL VACUUM CLEANER FOR HEAVY AND CONTINUOUS APPLICATIONS
The DG75 vacuum cleaner combines the high suction performance of models from the heavy duty line with the compactness of the three-phase intermediate series. Superior performance of the side channel blower, enlarged surface of the polyester filter and excellent capacity for solid and liquid collection are what make the DG75 special. The handy manual filter shaker helps to ensure maximum suction performance at all times, even in continuous duty or use in centralised systems. Also available in ATEX certificated version.
ADVANTAGES
- Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
- Largest surface filter in its category
- Complete steel construction
- Extractable collection container with optional use of disposable bags
- Pressure relief valve for motor protection
- Vacuum gauge to detect filter clogging
- Star-triangle switchboard
- Easy filter replacement
- High filtration efficiency
- High air flow value
- Integrated automatic filter cleaning system
DATASHEET
| Index | Unit | DG 75 | DG 75 AF | DG 75 PN | DG 75 AF PN |
|---|---|---|---|---|---|
| Voltage | V - Hz | 400 - 50 | 400 - 50 | 400 - 50 | 400 - 50 |
| Power | kW | 7,5 | 7,5 | 7,5 | 7,5 |
| Electrical protection | IP | 55 | 55 | 55 | 55 |
| Max water lift | mmH2O | 4.000 | 3.200/2.700 | 4.000 | 3.200 |
| Max air flow | m³/h | 530 | 700 | 530 | 700 |
| Suction inlet | mm | 80 | 80 | 80 | 80 |
| Noise level (EN ISO 3744) | dB(A) | 76 | 76 | 76 | 74 |
| Filter Type | Star | Star | Cartridge | Cartridge | |
| Surface - Diameter | cm²-mm | 49.500 - 500 | 49.000-500 | 80.000 | 80.000 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - ANT M | Polyester - ANT M | Polyester - ANT M | Polyester - ANT M |
| Air load on filter | m³/m²/h | 108 | 108 | ||
| Cleaning system | Manual | Manual | Automatic PN | Automatic PN | |
| Discharge system | Roll-out container | Roll-out container | Roll-out container | Roll-out container | |
| Capacity | lt. | 100 | 100 | 100 | 100 |
| Dimensions | cm | 66x118x175h | 66x118x175h | 66x118x175h | 66x118x175h |
| Weight | kg | 170 | 170 | 170 | 170 |
 Download technical sheet | Download technical sheet | Download technical sheet | Download technical sheet |
OTHER SETUPS
DG 75 AF
INDUSTRIAL VACUUM CLEANER ON WHEELS WITH HIGH AIRFLOW
The DG 75 AF industrial vacuum cleaner is equipped with a blower capable of producing an extremely high air flow rate, perfect for quickly sucking up large quantities of material.
ADVANTAGES
- Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
- Largest surface filter in its category
- Extractable collection container with optional use of disposable bags
- Pressure relief valve for motor protection
- Vacuum gauge to detect filter clogging
- Star-triangle switchboard
- Easy filter replacement
- Reduced downtime of machine tools
- High air flow value
- Full customization for specific needs
DATASHEET
| Index | Unit | DG 75 AIRFLOW |
|---|---|---|
| Voltage | V - Hz | 400-50 3~ |
| Power | kW | 7,5 |
| Electrical protection | IP | 55 |
| Max water lift | mmH2O | 3200/2700 |
| Max air flow | m³/h | 700 |
| Suction inlet | mm | 80 |
| Noise level (EN ISO 3744) | dB(A) | 76 |
| Filter Type | Star | |
| Surface - Diameter | cm²-mm | 49.500-500 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - L |
| Air load on filter | m³/m²/h | 143 |
| Cleaning system | Manual | |
| Discharge system | Roll-out container | |
| Capacity | lt. | 100 |
| Dimensions | cm | 66X118X175H |
| Weight | kg | 180 |
| Download technical sheet |
