Overview
Description

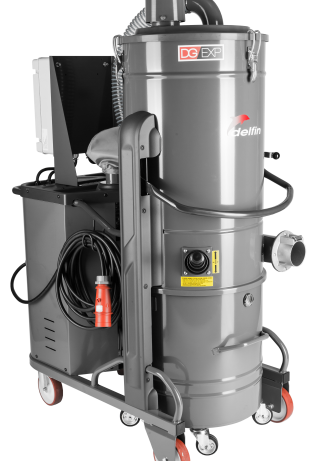

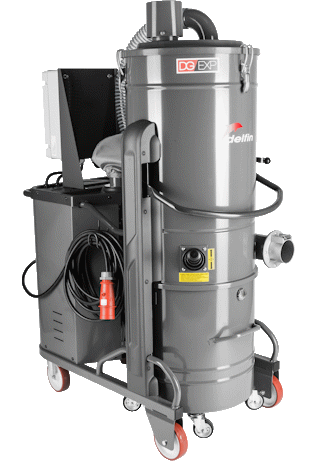

The DG 75 AF is the industrial vacuum cleaner on wheels with 7.5 kW side channel blower and Airflow automatic reverse cleaning system, designed for high-intensity continuous applications with large volumes of fine dust. The automatic reverse compressed air cleaning system ensures constant maintenance of the nominal airflow throughout the entire suction cycle, eliminating interruptions for manual filter cleaning.
With a maximum airflow of 700 m³/h and continuous vacuum up to 4000 mmH2O, it is the ideal choice for industrial dedusting, suction of fine dust from production lines, paint booths, and applications requiring high constant airflow. The large filtering surface with PTFE class M cartridges ensures superior filtration efficiency and long filter life.
The sturdy painted steel construction with IP65 protection, forklift intakes, and the large 100-liter container make it the ultimate solution for heavy industrial applications. Available with Endless Bag system for safe collection of hazardous dust. ATEX and BP versions available on request.
With a maximum airflow of 700 m³/h and continuous vacuum up to 4000 mmH2O, it is the ideal choice for industrial dedusting, suction of fine dust from production lines, paint booths, and applications requiring high constant airflow. The large filtering surface with PTFE class M cartridges ensures superior filtration efficiency and long filter life.
The sturdy painted steel construction with IP65 protection, forklift intakes, and the large 100-liter container make it the ultimate solution for heavy industrial applications. Available with Endless Bag system for safe collection of hazardous dust. ATEX and BP versions available on request.
Features
Application
Dust and solids
Footprint
Industrial construction with high durability and easy maintenance
Material
Complete painted steel construction
Filter
Antistatic polyester class M with integrated manual filter cleaning
Features
Continuous service, no maintenance required
Technical specs
Technical details
| Unit of measure | Data | |
|---|---|---|
| Voltage | V | 400 |
| Power | kW | 8.60 |
| Frequency | Hz | 50 |
| Current Draw | A | 15.50 |
| Inlet Diameter | mm | 80 |
| Bin Capacity | lt. | 100 |
| Noise Level (EN ISO 3744) | dB(A) | 76 |
| Dimensions | cm | 66x120x175h |
| Weight | Kg | 170 |
| Electrical Protection Rating | IP | 65 |
| Max Vacuum Rate | 3.200 | |
| Continuous Duty Vacuum | 2.900 | |
| Max Airflow | 700 | |
| Motor Type | Three-phase Turbine |
Certifications
Filter class
| Unit of measure | Data | |
|---|---|---|
| Primary Filter | Star | |
| Primary filter load | m³(m²/h) | 143 |
| Primary filter surface area | cm² | 49.000 |
| Primary filter diameter | mm | 500 |
| Primary filter media | Polyester | |
| Primary filter class (IEC 60335-2-69) | ANT M | |
| Filter cleaning system | Manual | |
| HEPA absolute filter | Optional | |
| Absolute filter surface area | cm² | 52.000 |
| Absolute filter class (EN 1822-5) | H14 con 99,995% di efficienza secondo il metodo MPPS | |
| Relief valve | Included |
Certifications
Documentation
Publications
PDF, 173.96 KB
PDF, 383.86 KB
Accessories
Accessories
TA.0464.3000
Container lifting strap and bracket
TA.0181.0000
Recommended accessory kit 50 WD
TA.0182.0000
Recommended accessory kit 50 Dry
Optionals
AUT
Automatic filter shaking with 24V panel, without compressor
C-INFORC + GOLFARI
Forklift attachment and eyebolts
DEPR
Pressure differential kit for use of disposable bag
H
Additional H14 absolute filter
M PTFE
Class M filter with PTFE coating
MT
Earth Grounding
X
AISI 304 stainless steel container
XX
Steel container and filter chamber in AISI 304 stainless steel
