DM3 PSR

Overview

Description

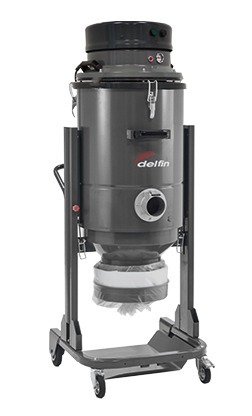

The DM3 PSR industrial vacuum cleaner has 3 by-pass motors that drive the suction, ensuring the highest levels of suction efficiency even during long cleaning cycles.

The collected material is gathered in an integrated pre-separator with Endless Bag, allowing easy and safe handling of the collected material. Only a small amount of the lighter particles pass through the primary filter and are collected in a second Endless Bag, positioned under the filter unit. This safe collection system is the best method for vacuuming large quantities of fine or toxic dust, avoiding any contact with the operator or the surrounding environment.

Features

Application

Dust and solids

Footprint

Compact and mobile thanks to the double
telescopic structure that allows adjustable height

Material

Complete painted steel construction

Filter

Integrated cyclonic unit and large Pocket filter with manual cleaning

Features

Integrated cyclonic unit and double Endless Bag collection unit

Technical specs

Technical details

DM3 PSR
	Unit of measure	Data
Voltage	V	230
Power	kW	3.45
Frequency	Hz	50
Current Draw	A	15.00
Inlet Diameter	mm	80
Bin Capacity	lt.	2x Endless Bag 20 mt
Noise Level (EN ISO 3744)	dB(A)	76
Dimensions	cm	135x80x162h
Weight	Kg	105
Max Vacuum Rate		2.500
Continuous Duty Vacuum		2.500
Max Airflow		540
Motor Type		Single-phase Bypass

Certifications

Filter class

	Unit of measure	Data
Primary Filter		Star
Primary filter surface area	cm²	30.000
Primary filter diameter	mm	500
Primary filter media		Polyester
Primary filter class (IEC 60335-2-69)		M PTFE
Filter cleaning system		Manual
HEPA absolute filter		Optional
Absolute filter surface area	cm²	26.000
Absolute filter class (EN 1822-5)		H14 con 99,995% di efficienza secondo il metodo MPPS

Unit of measure

Data

Primary Filter

Star

Primary filter surface area

cm²

30.000

Primary filter diameter

500

Primary filter media

Polyester

Primary filter class (IEC 60335-2-69)
