Overview
Description

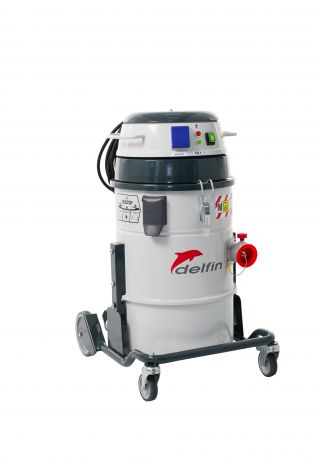

The single-phase vacuum cleaner Mistral 301 Dustop is unique in its field. A compact industrial vacuum cleaner that effectively combines the advantages of sturdiness, power and filtration efficiency of a true industrial vacuum cleaner with the maneuverability, convenience and ease of use of a professional vacuum cleaner.
The 301 DUSTOP vacuum cleaner is equipped with a powerful single-phase Lamb-Ametek motor and a very sturdy steel frame (also available in stainless steel). Inside the steel filter chamber is the conical cartridge filter with large surface area and high filtration efficiency (1 micron, class M). The new semi-automatic Dustop filter cleaning system allows the operator to clean the filter effortlessly by simply lifting the flap on the chamber a few times. This simple operation allows you to always maintain maximum filtering capacity and the best performance of the vacuum cleaner.
Thanks to this modular structure, the vacuum cleaner can also be equipped with a high efficiency filter bag, an absolute class H (HEPA) filter or a variety of special filters, specifically designed for particular applications.
The 301 DUSTOP vacuum cleaner is equipped with a powerful single-phase Lamb-Ametek motor and a very sturdy steel frame (also available in stainless steel). Inside the steel filter chamber is the conical cartridge filter with large surface area and high filtration efficiency (1 micron, class M). The new semi-automatic Dustop filter cleaning system allows the operator to clean the filter effortlessly by simply lifting the flap on the chamber a few times. This simple operation allows you to always maintain maximum filtering capacity and the best performance of the vacuum cleaner.
Thanks to this modular structure, the vacuum cleaner can also be equipped with a high efficiency filter bag, an absolute class H (HEPA) filter or a variety of special filters, specifically designed for particular applications.
Features
Application
Dust and solids
Footprint
Compact and mobile
Material
Complete painted steel construction
Filter
High efficiency class M with Dustop filter cleaning system
Features
Additional plug for electrical tool connection and
quick-release detachable container with carrying handle
Technical specs
Technical details
| Unit of measure | Data | |
|---|---|---|
| Voltage | V | 230 |
| Power | kW | 1.15 |
| Frequency | Hz | 50 |
| Current Draw | A | 5.00 |
| Alternative Voltages available | V | 115 |
| Inlet Diameter | mm | 50 |
| Bin Capacity | lt. | 13 |
| Noise Level (EN ISO 3744) | dB(A) | 74 |
| Dimensions | cm | 48x59x80h |
| Weight | Kg | 25 |
| Max Vacuum Rate | 2.500 | |
| Continuous Duty Vacuum | 2.500 | |
| Max Airflow | 180 | |
| Motor Type | Single-phase Bypass |
Certifications
Filter class
| Unit of measure | Data | |
|---|---|---|
| Primary Filter | Cartridge | |
| Primary filter load | m³(m²/h) | 300 |
| Primary filter surface area | cm² | 6.000 |
| Primary filter diameter | mm | 360 |
| Primary filter media | PTFE polyester | |
| Primary filter class (IEC 60335-2-69) | M | |
| Filter cleaning system | Dustop | |
| HEPA absolute filter | Optional | |
| Absolute filter surface area | cm² | 20.500 |
| Absolute filter class (EN 1822-5) | H14 con 99,995% di efficienza secondo il metodo MPPS |
Certifications
Documentation
Publications
PDF, 168.47 KB
PDF, 321.76 KB
Accessories
Accessories

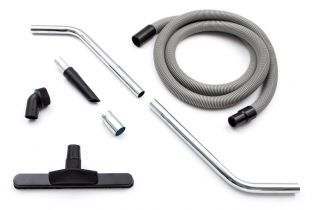

TA.0254.0000
Optionals
ANT M
Antistatic filter class M
EL-SYST
Power socket for power tools with automatic start
H
Additional H14 absolute filter
MT
Earth Grounding
MT-ANT FILTER
Earth grounding - ANT Filter - Chain
X
AISI 304 stainless steel container
XX
Steel container and filter chamber in AISI 304 stainless steel
