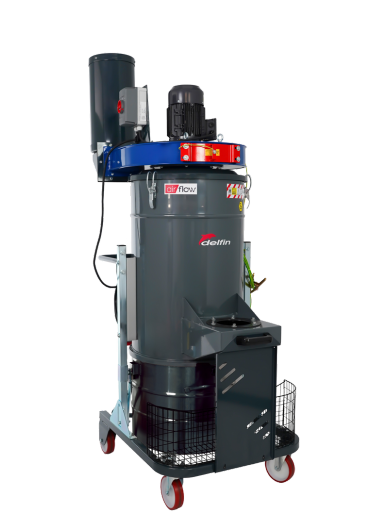

EV AP 560
INDUSTRIAL CHIPS AND DUST COLLECTOR

  • Cement
  • Ceramics and pottery industries
  • Wine

EV AP 560 has been designed to be directly integrated on production lines and to directly collect light chips and fine suspended dust. Ideal and safe for the recovery of very thin chips ( as those generated during the processing of aluminium and PVC), it guarantees top recovery efficiency.
A wide polyester filter and a 160 lt collection capacity make this dust collector the must-have to guarantee the top efficiency of continuous production lines or to remove large quantities of light chips while working.
The machine can be either supplied with a suction arm installed on it or to be installed on dedusting systems/production lines.
The ATEX-certified version is also available


CHIPS COLLECTOR IDEAL FOR ALUMINIUM OR PVC MITER SAWS
The recovery of aluminium or PVC dust particles on single or double-head miter saws, as well as on CNC machineries, is one of the typical applications of this industrial chips collector.
Thanks to EV AP 560, it will be possible to recover almost all the waste and chips from the source, and to significanlty cut machines maintenance and workplace cleaning time.

ADVANTAGES

  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Extractable collection container with optional use of disposable bags
  • High air flow value
  • Full customization for specific needs
  • Conceived for the suction of fine dusts suspended in the air
  • Optional articulated arm to suction in a restricted area

DATASHEET

Index UnitZFR EV AP 560
VoltageV - Hz400 - 50
Power kW4
Electrical protectionIP55
Max water liftmmH₂O200 / 300 / 350
Max air flowm³/h2700 / 1800 / 1100
Suction inletmm200 / 150 / 120
Noise level (EN ISO 3744)dB(A)74
Filter TypeStar
Surface - Diametercm²-mm50.000 - 500
Material - EfficiencyIEC 60335-2-69Polyester - ANT M
Cleaning systemManual
Discharge systemRoll-out container
Capacitylt100
Dimensionscm78x85x215h
Weightkg130
Download ZFR EV AP 560Download technical sheet

OTHER SETUPS

EV AP 560 PN
INDUSTRIAL CHIPS AND DUST COLLECTOR WITH AUTOMATIC FILTER CLEANING SYSTEM

  • Chemical-pharmaceutical
  • Electronics
  • Wine
INDUSTRIAL CHIPS AND DUST COLLECTOR WITH AUTOMATIC FILTER CLEANING SYSTEM

The EV AP 560 PN chips collector is equipped with an automatic filters cleaning system to guarantee a more efficient, safe and independent use of this collector on the machine

ADVANTAGES

  • Integrated filter cleaning system
  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • High filtration efficiency
  • High air flow value
  • Possibility of integration on other vacuum cleaners
  • Conceived for the suction of fine dusts suspended in the air
  • Optional articulated arm to suction in a restricted area

DATASHEET

Index UnitZFR EV AP 560 PN 2,2KwZFR EV AP 560 PN 4Kw
VoltageV - Hz400 - 50400 - 50
Power kW2,24
Electrical protectionIP5555
Max water liftmmH₂O280200 / 300 / 350
Max air flowm³/h1.3002.700 / 1.800 / 1.100
Suction inletmm150200 / 150 / 120
Noise level (EN ISO 3744)dB(A)7274
Filter TypeCartridgeCartridge
Surface - Diametercm²-mm106.000 - 560106.000 - 560
Material - EfficiencyIEC 60335-2-69Polyester - ANT MPolyester - ANT M
Cleaning systemAutomatic PNAutomatic PN
Discharge systemRoll-out containerRoll-out container
Capacitylt100100
Dimensionscm78x85x250h78x85x250h
Weightkg125140
Download ZFR EV  AP 560 PN 2,2KwDownload technical sheet
Download ZFR EV  AP 560 PN 4KwDownload technical sheet

ZFR EV AP 560 1/2D
INDUSTRIAL DUST COLLECTOR WITH ATEX CERTIFICATION ZONE 20 INSIDE AND 21 OUTSIDE FOR AIRBORNE DUST AND CHIP EXTRACTORS FOR PROCESS LINES

  • Food Industry
  • Aluminum and PVC
INDUSTRIAL VACUUM CLEANER FOR FINE DUST EXTRACTION 202 LP

The EV AP 500 filter purifier is designed to suck up suspended dust in Atex work environments. Installation on PVC or aluminium production lines, materials that generate very fine dust and swarf, allows the EV AP 500 to be used as a swarf collector, which reduces machine downtime. The electric fan with which it is equipped guarantees a high prevalence, capable of suctioning with constant high performance over time.
Suction of explosive dust in zone 21 risk zones can create an even more hazardous situation inside the industrial vacuum cleaner, where the suctioned dust is collected. Atex certification for zone 21 outside and 20 inside the vacuum cleaner chamber eliminates this risk.


ADVANTAGES

  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Extractable collection container with optional use of disposable bags
  • ATEX certified for Zone 20 inside the chamber and for Zone 21 outside the chamber
  • High air flow value
  • Full customization for specific needs
  • Conceived for the suction of fine dusts suspended in the air
  • Optional articulated arm to suction in a restricted area

DATASHEET

Index UnitZFR EV AP 560 1/2D
Atex zonesATEX Z20/21
MarkingEx II 1/2D Ex h IIIC T135°C Da/Db
VoltageV - Hz400 - 50 3-
Power kW4
Electrical protectionIP55
Max water liftmmH₂O200 / 300 / 350
Max air flowm³/h2700 / 1800 / 1100
Suction inletmm200 / 150 / 120
Noise level (EN ISO 3744)dB(A)74
Filter TypeStar
Surface - Diametercm²-mm50.000 - 560
Material - EfficiencyIEC 60335-2-69Polyester - M
Cleaning systemManual
Discharge system
Capacitylt100
Dimensionscm78x85x214h
Weightkg130
Download ZFR EV AP 560 1/2DDownload technical sheet

ZFR EV AP 560 1/3D
INDUSTRIAL DUST COLLECTOR FOR FINE DUST AND AIRBORNE FUMES ATEX CERTIFIED ZONE 22 EXTERNAL AND 20 INTERNAL

  • Food Industry
  • Aluminum and PVC
TÜV SÜD CERTIFIED INDUSTRIAL VACUUM CLEANER FOR FINE DUST EXTRACTION IN CLASS M & H  202TUV

The EV AP 560 filter purifier is designed to suck up suspended dust in Atex work environments. Installation on PVC or aluminium production lines, materials that generate very fine dust and swarf, allows the EV AP 560 to be used as a swarf collector, which reduces machine downtime. The electric fan with which it is equipped guarantees a high prevalence, capable of suctioning with constant high performance over time.
Suction of explosive dust in zone 22 risk zones can create an even more hazardous situation inside the industrial vacuum cleaner, where the suctioned dust is collected. Atex certification for zone 22 outside and 20 inside the vacuum cleaner chamber eliminates this risk.

ADVANTAGES

  • Largest surface filter in its category
  • Integrated filter cleaning system
  • Extractable collection container with optional use of disposable bags
  • High air flow value
  • Full customization for specific needs
  • Conceived for the suction of fine dusts suspended in the air
  • Optional articulated arm to suction in a restricted area
  • ATEX certified for Zone 20 inside the chamber and for Zone 22 outside the chamber

DATASHEET

Index UnitZFR EV AP 560 1/3D
Atex zonesATEX Z20/22
MarkingEx II 1/3D Ex h IIIC T135°C Da/Dc
VoltageV - Hz400 - 50 3-
Power kW4
Electrical protectionIP65
Max water liftmmH₂O200 / 300 / 350
Max air flowm³/h2700 / 1800 / 1100
Suction inletmm200 / 150 / 120
Noise level (EN ISO 3744)dB(A)74
Filter TypeStar
Surface - Diametercm²-mm50.000 - 560
Material - EfficiencyIEC 60335-2-69Polyester - M
Cleaning systemManual
Discharge system
Capacitylt100
Dimensionscm78x85x214h
Weightkg130
Download ZFR EV AP 560 1/3DDownload technical sheet
