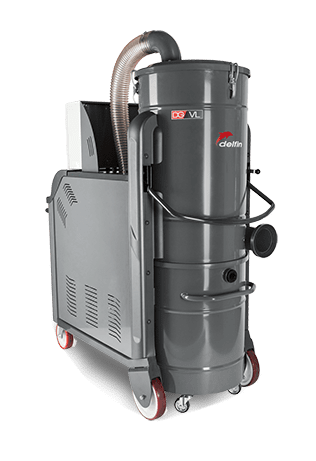

DG VL ATEX
INDUSTRIAL VACUUM CLEANER FOR HEAVY AND CONTINUOUS APPLICATIONS

The industrial vacuum cleaners from the DG VL series are durable and powerful, perfect for sucking up large mixed quantities of solid and liquid material in continuous applications or installed on centralised suction systems in areas that require Atex certificated equipment. The powerful side channel blower generates high levels of vacuum, making them suitable for for sucking up any material. The large surface area antistatic polyester filter and practical built-in Selfclean system guarantee a long working life. The ease with which it can be picked up by a standard forklift means it is simple and safe to handle even when the container is full. Option of automatic pneumatic filter cleaning system available on all models.
DG VL vacuum cleaners are also available in a non certified electric version.


OTHER SETUPS

DG VL Z22 - II 3D
ZONE 22 ATEX CERTIFIED INDUSTRIAL VACUUM WITH HIGH PERFORMANCE

  • Food Industry
  • Cement
  • Chemical-pharmaceutical
  • Building and construction
  • Electronics
  • Wine
  • Rubber
  • Packaging
  • Goldsmiths
  • Plastics
  • Waste treatment - Recycling
  • Textile
  • Finishing
  • CVS
ZONE 22 ATEX CERTIFIED INDUSTRIAL VACUUM WITH HIGH PERFORMANCE DG VL Z22 - II 3D

High surface area antistatic filtration with handy manual filter cleaning system built in, grounding and powerful side channel blower. All you need for safe vacuuming in environments with a rare risk of explosion.

ADVANTAGES

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Tangential suction inlet with integrated separation cyclone
  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • Pressure relief valve for motor protection
  • Hour meter for planned maintenance
  • Star-triangle switchboard
  • Easy filter replacement
  • Atex certified for Zone 22
  • Large surface antistatic filter
  • Earth grounding
  • Full customization for specific needs
  • Fork lift intakes included
  • SELF CLEAN filter-shaking cleaning system

DATASHEET

Index UnitDG VL 125 Z22DG VL 75 Z22DG VL 185 Z22DG VL 110 Z22
Atex zonesATEX Z22ATEX Z22ATEX Z22ATEX Z22
MarkingEx II 3D Ex tc IIIB T135°C X DcEx II 3D Ex tc IIIB T135°C X DcEx II 3D Ex tc IIIB T135°C X DcEx II 3D Ex tc IIIB T135°C X Dc
VoltageV - Hz400-50 3~400-50 3~50400-50 3~
Power kW12.57.518,511
Electrical protectionIP65556555
Max waterliftmmH2O400045004000
Max air flowm³/h110075013501000
Suction inletmm120120120120
Noise level (EN ISO 3744)dB(A)75727675
Filter TypeStarStarStarStar
Surface - Diametercm²-mm70.000-56070.000-56070.000-56070.000-560
Material - EfficiencyIEC 60335-2-69Polyester - ANT MPolyester - ANT MPolyester - ANT MPolyester - ANT M
Cleaning systemSELF CLEAN SELF CLEAN SELF CLEAN SELF CLEAN
Capacitylt.160160160160
Dimensionscm180x77x200h180x77x200h180x77x200h180x77x200h
Weightkg220200265220
Continuous water liftmmH2O3200
Download DG VL 125 Z22Download technical sheet
Download DG VL 75 Z22Download technical sheet
Download DG VL 185 Z22Download technical sheet
Download DG VL 110 Z22Download technical sheet

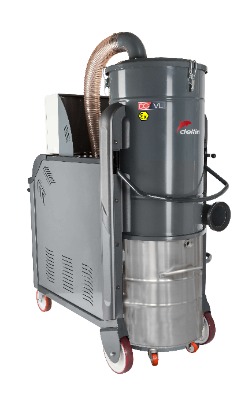

DG VL Z20/22 - II 1/3D
ATEX INTERNAL ZONE 20 AND EXTERNAL ZONE 22 CERTIFIED INDUSTRIAL VACUUM

  • Aviation
  • Food Industry
  • Chemical-pharmaceutical
  • Metalworking
ATEX INTERNAL ZONE 20 AND EXTERNAL ZONE 22 CERTIFIED INDUSTRIAL VACUUM DG VL Z20/22 - II 1/3D

Vacuuming potentially explosive dusts in zone 22 hazardous areas can create an even more perilous situation inside the industrial vacuum cleaner, where the extracted dust is moved and collected. Zone 20 certification of the interior of the vacuum chamber eliminates this risk.

ADVANTAGES

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Integrated filter cleaning system
  • Tangential suction inlet with integrated separation cyclone
  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • Pressure relief valve for motor protection
  • Vacuum gauge to detect filter clogging
  • High filtration efficiency
  • Large surface antistatic filter
  • Conceived for fine and hazardous dust suction
  • Additional HEPA filter (99,995% on 0,18 micron) included
  • Stainless steel AISI304 collection tank
  • Earth grounding
  • ATEX certified for Zone 20 inside the chamber and for Zone 22 outside the chamber

DATASHEET

Index UnitDG VL 75 EX 1/3DDG VL 125 EX 1/3D DG VL 185 EX 1/3D
Atex zonesATEX Z20/22ATEX Z20/22ATEX Z20/22
MarkingEx II 1/3D Ex h IIIC T160°C Da/DcEx II 1/3D Ex h IIIC T160°C Da/DcEx II 1/3D Ex h IIIC T160°C Da/Dc
VoltageV - Hz400 - 50 3~400 - 50 3~400 - 50 3~
Power kW7,518,518,5
Electrical protectionIP656565
Max waterliftmmH2O2.7003.0002.700
Max air flowm³/h7001.1001.350
Suction inletmm120120120
Noise level (EN ISO 3744)dB(A)727581,5
Filter TypeStarStarStar
Surface - Diametercm²-mm70.000 - 56070.000 - 56070.000 - 560
Material - EfficiencyIEC 60335-2-69Polyester - ANT MPolyester - ANT MPolyester - ANT M
Cleaning systemSELF CLEAN SELF CLEAN SELF CLEAN
Secondary filterHEPAHEPAHEPA
Collection tankAISI304 Stainless steelAISI304 Stainless steelAISI304 Stainless steel
Capacitylt.160160160
Dimensionscm180x77x200h180x77x200h180x77x200h
Weightkg200200265
Download DG VL 75 EX 1/3DDownload technical sheet
Download DG VL 125 EX 1/3DDownload technical sheet
Download  DG VL 185 EX 1/3DDownload technical sheet

DG VL Z20/21 - II 1/2D
ATEX INTERNAL ZONE 20 AND EXTERNAL ZONE 21 CERTIFIED INDUSTRIAL VACUUM

  • Aviation
  • Food Industry
  • Chemical-pharmaceutical
  • Metalworking
ATEX INTERNAL ZONE 20 AND EXTERNAL ZONE 21 CERTIFIED INDUSTRIAL VACUUM DG VL Z20/21 - II 1/2D

The most powerful Atex certified vacuum cleaners in the range for sucking up dust, solids and liquids in Atex zone 21.
Vacuuming potentially explosive dusts in zone 21 hazardous areas can create an even more perilous situation inside the industrial vacuum cleaner, where the extracted dust is moved and collected. Zone 20 certification of the interior of the vacuum chamber, the AISI304 stainless steel container and additional H14 absolute filter eliminate this risk and guarantee maximum suction performance.

ADVANTAGES

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Integrated filter cleaning system
  • Tangential suction inlet with integrated separation cyclone
  • Complete steel construction
  • Extractable collection container with optional use of disposable bags
  • Pressure relief valve for motor protection
  • ATEX certified for Zone 20 inside the chamber and for Zone 21 outside the chamber
  • Large surface antistatic filter
  • Conceived for fine and hazardous dust suction
  • Additional HEPA filter (99,995% on 0,18 micron) included
  • Stainless steel AISI304 collection tank

DATASHEET

Index UnitDG VL 75 EX 1/2DDG VL 125 EX 1/2D DG VL 185 EX 1/2D
Atex zonesATEX Z20/21ATEX Z20/21ATEX Z20/21
MarkingEx II 1/2D Ex h lllC T160°C Da/DbEx II 1/2D Ex h lllC T160°C Da/DbEx II 1/2D Ex h lllC T160°C Da/Db
VoltageV - Hz400 - 50 3~400 - 50 3~400 - 50 3~
Power kW7,518,518,5
Electrical protectionIP656565
Max waterliftmmH2O2.7003.0002.700
Max air flowm³/h7001.1001.350
Suction inletmm120120120
Noise level (EN ISO 3744)dB(A)727581,5
Filter TypeStarStarStar
Surface - Diametercm²-mm70.000 - 56070.000 - 56070.000 - 560
Material - EfficiencyIEC 60335-2-69Polyester - ANT MPolyester - ANT MPolyester - ANT M
Cleaning systemSELF CLEAN SELF CLEAN SELF CLEAN
Secondary filterHEPAHEPAHEPA
Collection tankAISI304 Stainless steelAISI304 Stainless steelAISI304 Stainless steel
Capacitylt.160160160
Dimensionscm180x77x200h180x77x200h180x77x200h
Weightkg200200265
Download DG VL 75 EX 1/2DDownload technical sheet
Download DG VL 125 EX 1/2DDownload technical sheet
Download  DG VL 185 EX 1/2DDownload technical sheet
