801 ATEX
ATEX-CERTIFIED INDUSTRIAL WET & DRY VACUUM CLEANER FOR INTERNAL 20 ZONE AND EXTERNAL 22 ZONE

  • Packaging
  • Coffee , tea, tobacco processing
  • Optics
  • Plastics

In industries with explosive atmospheres, it is essential to have the suitable equipment to prevent explosion risks guaranteeing workers health and safety.

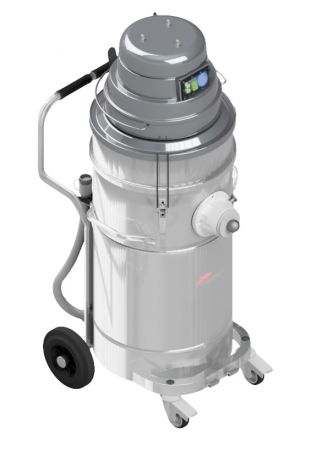

The ATEX MTL 801 1/3D with double certification from third part has been specifically designed for the safe vacuuming of liquids and dust in medium explosion risks.
The high filtration efficiency of the vacuumed dust up to 95.99% is guaranteed by the double level of filtration that protects the motor and prevents the leakage of the vacuumed material into the surrounding environment.
The bypass head is protected by the new EX tb certified maximum security enclosure.

ADVANTAGES

  • Vacuum gauge to detect filter clogging
  • Easy filter replacement
  • Easy to clean and to maintain
  • ATEX Certified Z20 internal (filtering chamber) / Z22 external

DATASHEET

Index UnitMTL 801 1/3D
Atex zonesCE EX 1/3D
MarkingII 1/3D Ex h tb IIIC T95°C Da/Dc
VoltageV - Hz230 - 50/60 1~
Power kW1,15
Max water liftmmH₂O2500
Max air flowm³/h180
Suction inletmm80
Noise level (EN ISO 3744)dB(A)74
Use zoneHazardous location
Filter TypeBag
Surface - Diametercm²-mm8.000 - 420
Material - EfficiencyIEC 60335-2-69Polyester - ANT M
Additional standard filterHEPA
Capacityl80
Dimensionscm55x63x126h
Weightkg42
Download MTL 801 1/3DDownload technical sheet

Ask for a free quotation

+
