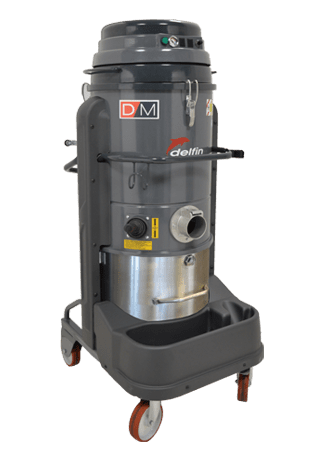

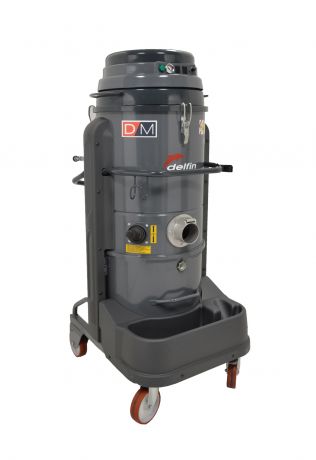

DM
ATEX CERTIFIED AND ACD COMPACT SINGLE-PHASE INDUSTRIAL VACUUM CLEANER

The industrial vacuum cleaner DM has been developed by our technical team in the ACD classified version or with double ATEX certification to offer efficient and safe solutions for the vacuuming of combustible dust both in explosion risk areas and in unclassified areas.
The new Brushless or Bypass single-phase head for ATEX certified models features the new Ex tb certified safety enclosure specifically designed to prevent the entry of combustible dust and prevent explosion risks. The AISI304 stainless steel container of 60 liters, the primary filter in antistatic polyester M and the secondary absolute filter HEPA as standard guarantee to operate in total safety.


OTHER SETUPS

DM3 EL ACD
ACD CLASSIFIED INDUSTRIAL VACUUM CLEANER FOR COMBUSTIBLE DUST

    ACD classified industrial vacuum cleaner for combustible dust

    The DM3 EL ACD model equipped with 3 powerful bypass motors has been specifically designed for the safe removal of combustible dust in working environments not classified as explosion atmospheres.

    Also available in the Endless Bag version to offer a safe and efficient solution for the collection and rapid disposal of the vacuumed material, avoiding the inhalation of any puffs by the operator during the bag removal.

    DM2 EL 1/3D
    ATEX CERTIFIED INDUSTRIAL VACUUM CLEANER FOR INTERNAL 20 ZONE AND EXTERNAL 22 ZONE

      ATEX certified industrial vacuum cleaner for internal 20 zone and external 22 zone

      The single-phase industrial vacuum cleaner, equipped with 2 bypass motors, is ideal for non-continuous applications aimed at the safe removal of combustible dust and solid in working environments classified as medium explosion risk. The head is protected by the new Ex tb certified security enclosure. The two filtration stages, the antistatic polyester filter M and the standard absolute filter, guarantee a high filtration efficiency.
      Also available in the Endless Bag version to offer a safe and efficient solution for the collection and disposal of the vacuumed material.

      DM2 1/2D
      ATEX CERTIFIED INDUSTRIAL VACUUM CLEANER FOR INTERNAL 20 ZONE AND EXTERNAL 21 ZONE

      • Electronics
      ATEX certified industrial vacuum cleaner for internal 20 zone and external 21 zone

      The ATEX certified DM2 1/2D vacuum cleaner has been specifically designed to ensure the safe vacuuming of combustible dust in areas with a high risk of explosion.
      The head, protected by the Ex tb certified safety enclosure, is equipped with two powerful brushless motors of 2.2 kw, free from routine maintenance, which guarantee a high vacuuming capacity making it suitable for continuous applications  over 3 hours a day.
      Equipped with convenient integrated accessory kit.

      ADVANTAGES

      • Vacuum gauge to detect filter clogging
      • Compact and mobile
      • Easy filter replacement
      • Stainless steel AISI304 collection tank
      • Earth grounding
      • Easy to clean and to maintain
      • Accessory kit included
      • High efficiency filtration
      • ATEX Certified Z20 internal (filtering chamber) / Z21 external

      DATASHEET

      Index UnitDM2 1/2D
      MarkingII 1/2D Ex h tb IIIC T95°C Da/Db
      VoltageV - Hz115/230 - 50/60 1~
      Power kW2,2
      Max water liftmmH₂O2250
      Max air flowm³/h430
      Suction inletmm80
      Noise level (EN ISO 3744)dB(A)76
      EX CategoryCE EX 21 1/2D
      Filter TypeStar
      Surface - Diametercm²-mm30.000-500
      Material - EfficiencyIEC 60335-2-69Polyester - ANT M
      Air load on filter m³/m²/h143
      Cleaning systemManual
      Additional standard filterHEPA
      Collection tank
      Capacityl100
      Dimensionscm77x66x168h
      Weightkg87
      Download DM2 1/2DDownload technical sheet

      DM2 INERT
      ATEX CERTIFIED INDUSTRIAL VACUUM CLEANER FOR CONDUCTIVE DUST

      • OEM Original Equipment Manufacturers
      • Optics
      • Explosive and conductive dusts
      ATEX certified industrial vacuum cleaner for combustibile dust with inert system

      Available in the ATEX certified versions to operate in zone 22 and in zone 21, this INERT model guarantees the safe vacuuming of conductive powders in working environments at high risk of explosion.
      The AISI 304 stainless steel container is equipped with a powder inertization system to neutralize them as soon as they are immersed in the inertizing liquid.
      Inside the container, an innovative system of minimum level control allows the ignition only in the presence of liquid ensuring maximum safety during use.

      ADVANTAGES

      • Compact and mobile
      • Stainless steel AISI304 collection tank
      • Earth grounding
      • Easy to clean and to maintain
      • Inert liquid bath system for the safe discharge of explosive and conductive metal dust
      • Easily removable container for safe disposal of collected material
      • Prevents the build-up of the explosive atmosphere inside the vacuum
      • ATEX certified for Zone 20 inside the chamber and for Zone 22 outside the chamber
      • High efficiency filtration
      • ATEX Certified Z20 internal (filtering chamber) / Z21 external

      DATASHEET

      Index UnitDM2 1/2D INERTDM2 1/3D INERT
      Atex zonesCE EX 1/2D
      MarkingII 1/2D Ex h tb IIIC T95°C Da/DbII 1/3D Ex h tb IIIC T95°C Da/Dc
      VoltageV - Hz115/230 - 50/60 1~230 - 50/60 1~
      Power kW2,22,3
      Max water liftmmH₂O22502500
      Max air flowm³/h430360
      Suction inletmm8080
      Noise level (EN ISO 3744)dB(A)7474
      Material - EfficiencyIEC 60335-2-69Polyester - ANT M
      Air load on filter m³/m²/h143120
      Cleaning systemManualManual
      Additional standard filterHEPA
      1st stage filterStarStar
      Surface and diameter30.000-50030.000 - 500
      Media, classPOLYESTER - ANT MPOLYESTER - ANT M
      Dust capacityl100
      Dimensionscm77x66x168h77x66x168h
      Weightkg9090
      Capacityl100
      Download DM2 1/2D INERTDownload technical sheet
      Download DM2 1/3D INERTDownload technical sheet
