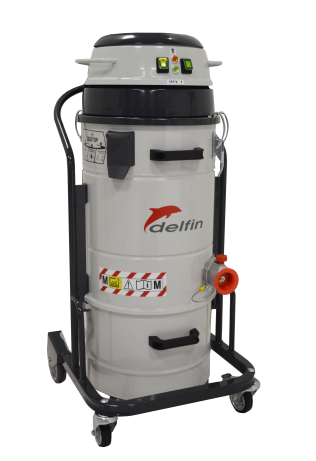

202 DS

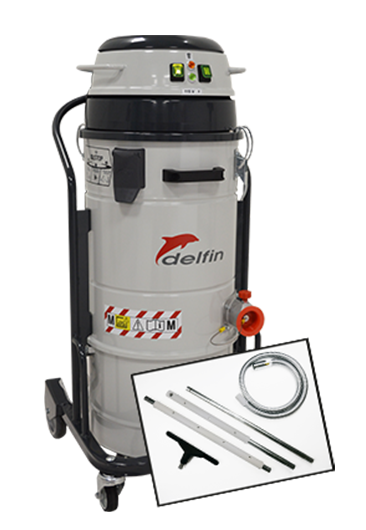

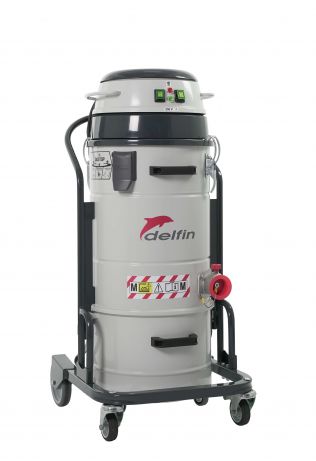

INDUSTRIAL VACUUM CLEANER FOR DUST
The 202 DS DUSTOP industrial vacuum cleaner is by far the best seller in the Delfin line. 2 single-phase motors, class M filter with very large surface areas and great manoeuvrability make the 202 DS vacuum cleaner the perfect suction solution for removing dust from any type of laboratory or production plant. Thanks to the DUSTOP filter cleaning system, which works via differential pressure, the vacuum cleaner is guaranteed to deliver continuous great performance. The possibility of using disposable bags and the accessory kit included, make it extremely simple for the operator to use. Also available in Atex version and with compressed air supply.
ADVANTAGES
- Largest surface filter in its category

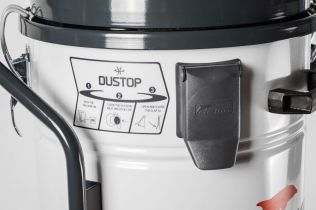

- Integrated filter cleaning system
- Complete steel construction
- Extractable collection container with optional use of disposable bags
- Two powerful by pass motors with independent cooling
- Low noise level
- Compact and mobile
- Easy filter replacement

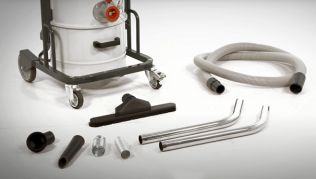

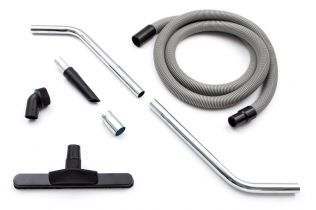

- Accessory kit as standard
DATASHEET
| Index | Unit | MTL 202 DS |
|---|---|---|
| Voltage | V - Hz | 230 - 50 |
| Power | kW | 2,3 |
| Max waterlift | mmH2O | 2.500 |
| Max air flow | m³/h | 360 |
| Suction inlet | mm | 50 |
| Noise level (EN ISO 3744) | dB(A) | 76 |

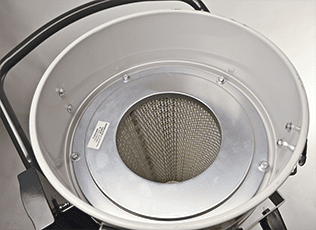

| Filter Type | Cartridge | |
| Surface - Diameter | cm²-mm | 30.000 - 360 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - M PTFE |
| Air load on filter | m³/m²/h | 120 |
| Cleaning system | Dustop | |
| Discharge system | Roll-out container | |
| Capacity | lt. | 20 |
| Dimensions | cm | 59x48x110h |
| Weight | kg | 35 |
 Download technical sheet |
OTHER SETUPS
202DS ECO
INDUSTRIAL VACUUM CLEANER FOR OVEN CLEANING
The 202DS ECO industrial vacuum cleaner comes equipped with a powerful, maintenance-free, side channel blower. Ideal for continuous applications or in fixed installations on machinery.
ADVANTAGES
- Largest surface filter in its category
- Complete steel construction
- Extractable collection container with optional use of disposable bags
- Low noise level
- Compact and mobile
- Easy filter replacement
- High filtration efficiency
- Accessory kit as standard
DATASHEET
| Index | Unit | 202 DS ECO T | 202 DS ECO M |
|---|---|---|---|
| Voltage | V - Hz | 400 - 50 | 230 - 50 |
| Power | kW | 1,8 | 1,8 |
| Electrical protection | IP | 55 | 55 |
| Max waterlift | mmH2O | 2.300 | 2.300 |
| Max air flow | m³/h | 250 | 250 |
| Suction inlet | mm | 50 | 50 |
| Noise level (EN ISO 3744) | dB(A) | 70 | 70 |
| Filter Type | Cartridge | Cartridge | |
| Surface - Diameter | cm²-mm | 30.000 - 360 | 30.000 - 360 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - M | Polyester - M |
| Air load on filter | m³/m²/h | 83 | 83 |
| Cleaning system | Dustop | Dustop | |
| Discharge system | Roll-out container | Roll-out container | |
| Capacity | lt. | 20 | 20 |
| Dimensions | cm | 50x48x120h | 50x48x120h |
| Weight | kg | 64 | 64 |
| Download technical sheet | Download technical sheet |

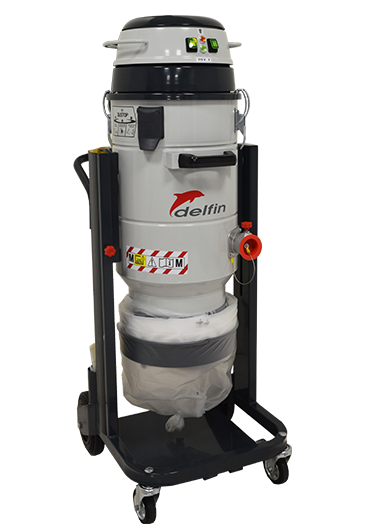

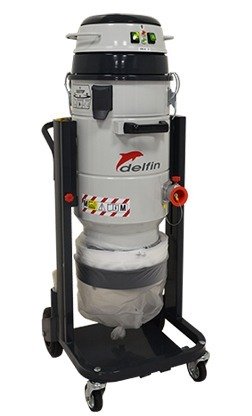

202DS LONGOPAC
INDUSTRIAL VACUUM CLEANER WITH LONGOPAC COLLECTION BAG FOR MAXIMUM SAFETY WHEN EXTRACTING FINE DUST
The 202DS Longopac vacuum cleaner comes with a system to ensure extracted dust is securely bagged, making the removal of fine, toxic or harmful dusts completely safe. Ideal for sucking up dust from construction and surface treatments. The Longopac is an “endless” bag system (20 metres in length) whose weight and length can be regulated according to needs, thereby ensuring there is no contact whatsoever between the operator and the dust. A handy system of springs means the vacuum cleaner can lowered, making it easier to transport on the company’s reclamation or surface treatment vehicles.
ADVANTAGES
- Largest surface filter in its category
- Complete steel construction
- Two powerful by pass motors with independent cooling
- Compact and mobile
- Easy filter replacement
- Adjustable height to facilitate transport on vehicles
- Standard or Longopac interchangeable collection unit
- Sliding dumper for DUSTOP system included
DATASHEET
| Index | Unit | MTL 202 DS LP |
|---|---|---|
| Voltage | V - Hz | 230 - 50 |
| Power | kW | 2,3 |
| Max waterlift | mmH2O | 2.500 |
| Max air flow | m³/h | 320 |
| Suction inlet | mm | 50 |
| Noise level (EN ISO 3744) | dB(A) | 76 |
| Filter Type | Cartridge | |
| Surface - Diameter | cm²-mm | 30.000 - 360 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - M PTFE |
| Air load on filter | m³/m²/h | 120 |
| Cleaning system | Dustop | |
| Discharge system | Longopac bag | |
| Dimensions | cm | 50x48x125h |
| Weight | kg | 55 |
| Download technical sheet |
202 DS TUV
TÜV SÜD CERTIFIED INDUSTRIAL VACUUM CLEANER FOR FINE DUST EXTRACTION IN CLASS M & H
The TÜV 202DS vacuum cleaner has achieved certification by the TÜV SÜD independent certifying body for its completely safe handling of dust extraction. The certification covers the entire machine, including filters and accessories, and guarantees excellent filtration quality, including the presence of fine dust particles.
ADVANTAGES
- Largest surface filter in its category
- Integrated filter cleaning system
- Tangential suction inlet with integrated separation cyclone
- Extractable collection container with optional use of disposable bags
- Two powerful by pass motors with independent cooling
- Compact and mobile
- Easy filter replacement
- Additional HEPA filter (99,995% on 0,18 micron) included
- Accessory kit as standard
- Easily removable container for safe disposal of collected material
- TUV certification of suitability for the suction of fine and toxic powders, in compliance with dust classes H (European standards DIN -EN 60335-2-69 / 2015 and IEC 60335-2-69 / 2012).
DATASHEET
| Index | Unit | 202 DS TUV M | 202 DS TUV H |
|---|---|---|---|
| Voltage | V - Hz | 230 - 50 | 230 - 50 |
| Power | kW | 2,3 | 2,3 |
| Max waterlift | mmH2O | 2500 | 2500 |
| Max air flow | m³/h | 360 | 360 |
| Suction inlet | mm | 50 | 50 |
| Noise level (EN ISO 3744) | dB(A) | 76 | 76 |
| Filter Type | Cartridge | Cartridge | |
| Surface - Diameter | cm²-mm | 30.000 - 360 | 30.000 - 360 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - M | Polyester - M |
| Air load on filter | m³/m²/h | 120 | 120 |
| Cleaning system | Dustop | Dustop | |
| Discharge system | Roll-out container | Roll-out container | |
| Transport capacity | kg/h | 20 | |
| Dimensions | cm | 59x48x110h | 59x48x110h |
| Weight | kg | 35 | 35 |
| Capacity | lt. | 20 | |
| Download technical sheet | Download technical sheet |

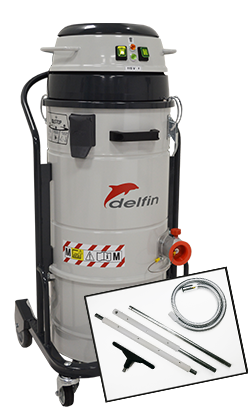

202DS OVEN
INDUSTRIAL VACUUM CLEANER FOR OVEN CLEANING
Oven cleaning is crucial for final product quality. Vacuum dust and production residuals is a simple task thanks to 202DS OVEN. 2 single-phase motors, Nomex filter for high temperature resistance, thermal and antistatic kit accessories for hot material with extensions for complete cleaning of ovens.
ADVANTAGES
- Largest surface filter in its category
- Two powerful by pass motors with independent cooling
- Compact and mobile
- Easy filter replacement
- Accessory kit as standard
- Dustop filter cleaning system
- Easily removable container for safe disposal of collected material
DATASHEET
| Index | Unit | 202 DS OVEN |
|---|---|---|
| Voltage | V - Hz | 230 - 50 |
| Power | kW | 2,3 |
| Max waterlift | mmH2O | 2500 |
| Max air flow | m³/h | 360 |
| Suction inlet | mm | 50 |
| Noise level (EN ISO 3744) | dB(A) | 76 |
| Filter Type | Cartridge | |
| Surface - Diameter | cm²-mm | 30.000 - 360 |
| Material - Efficiency | IEC 60335-2-69 | Polyester - L |
| Air load on filter | m³/m²/h | 120 |
| Cleaning system | Dustop | |
| Discharge system | Roll-out container | |
| Transport capacity | kg/h | 20 |
| Dimensions | cm | 59x48x110h |
| Weight | kg | 35 |
| Download technical sheet |
Ask for a free quotation
