Overview
Description

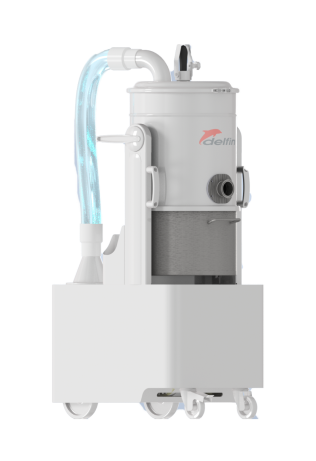

The Pharma 20.18 industrial vacuum cleaner is a compact, quiet, and flexible unit from the Delfin range of industrial vacuum cleaners for dust.
Designed for general cleaning and on-board suction within the pharmaceutical industry. Built in full compliance with GMP guidelines, it is an ideal vacuum cleaner for fine dust suction thanks to the antistatic polyester pocket filter, which ensures a large filtration surface and high resistance to the passage of dust. The filter is cleaned thanks to an integrated ergonomic manual cleaning system.
It is possible to install a HEPA filter capable of filtering dust down to 0.18 microns with 99.995% efficiency to ensure the purity of the air returned to the work environment.
The container is made of AISI304 stainless steel, satin-finished on the outside and polished on the inside to facilitate material flow and simplify cleaning operations. Suction is ensured by a powerful side channel turbine with a vacuum limiter valve equipped to protect the motor. Disposable filter bags can be used to collect and dispose of the material in total safety.
The unit is built entirely in painted steel, except for the container. On request, other parts of the vacuum cleaner can be made of AISI304 stainless steel with polishing of the parts in contact with the collected material.
The unit is available with certification for Atex 22 zones.
Designed for general cleaning and on-board suction within the pharmaceutical industry. Built in full compliance with GMP guidelines, it is an ideal vacuum cleaner for fine dust suction thanks to the antistatic polyester pocket filter, which ensures a large filtration surface and high resistance to the passage of dust. The filter is cleaned thanks to an integrated ergonomic manual cleaning system.
It is possible to install a HEPA filter capable of filtering dust down to 0.18 microns with 99.995% efficiency to ensure the purity of the air returned to the work environment.
The container is made of AISI304 stainless steel, satin-finished on the outside and polished on the inside to facilitate material flow and simplify cleaning operations. Suction is ensured by a powerful side channel turbine with a vacuum limiter valve equipped to protect the motor. Disposable filter bags can be used to collect and dispose of the material in total safety.
The unit is built entirely in painted steel, except for the container. On request, other parts of the vacuum cleaner can be made of AISI304 stainless steel with polishing of the parts in contact with the collected material.
The unit is available with certification for Atex 22 zones.
Features
Application
Compact, quiet, and flexible industrial vacuum cleaner for
on-board machine suction
Filter
Star filter with integrated ergonomic cleaning system with
an H14 absolute filter (optional) installed for the air exiting the vacuum cleaner
Features
Possibility to use safety filter bags for collection and
disposal of the material
Compliance
Container in AISI304 Stainless steel with welded bottom
head/head, satin-finished outside and polished inside, with carrying handle.
Clamp ø50 quick coupling suction inlet in stainless steel
Technical specs
Technical details
| Unit of measure | Data | |
|---|---|---|
| Voltage | V | 400 |
| Power | kW | 2.50 |
| Frequency | Hz | 50 |
| Current Draw | A | 5.00 |
| Inlet Diameter | mm | Clamp ø50 AISI304 |
| Bin Capacity | lt. | 22 |
| Noise Level (EN ISO 3744) | dB(A) | 70 |
| Dimensions | cm | 69x51x135h |
| Weight | Kg | 75 |
| Max Vacuum Rate | 3.000 | |
| Continuous Duty Vacuum | 2.200 | |
| Max Airflow | 270 | |
| Motor Type | Three-phase Turbine |
Certifications
Filter class
| Unit of measure | Data | |
|---|---|---|
| Primary Filter | Star | |
| Primary filter surface area | cm² | 12.000 |
| Primary filter diameter | mm | 360 |
| Primary filter media | Antistatic polyester | |
| Primary filter class (IEC 60335-2-69) | M | |
| Filter cleaning system | Manual | |
| HEPA absolute filter | Optional | |
| Absolute filter surface area | cm² | 20.500 |
| Absolute filter class (EN 1822-5) | H14 con 99,995% di efficienza secondo il metodo MPPS |
Certifications
Documentation
Publications
PDF, 173.01 KB
PDF, 473.23 KB
Accessories
Accessories
FI.0469.0000
Disposable bag class M (5 bags per box)
TA.1118.0000
Clamp fitting kit 2''/50 satin stainless steel
Optionals
FDA
FDA certified antistatic filter
H
Additional H14 absolute filter
MT
Earth Grounding
SB
Safe bagging system (1 bag)
SP
Single-phase suction unit
XX
Steel container and filter chamber in AISI 304 stainless steel
XX-IP
Mirror polishing of the internal chamber
XXX
Chamber chassis, container and trolley in AISI 304 stainless steel
