TC100 IF
VACUUM CLEANER FOR SEPARATING SWARFS AND RECYCLING LUBRICATING OILS

  • Cement works and construction industry
  • Building and construction
  • Packaging
  • Optics
  • Plastics
  • Waste treatment - Recycling
  • Sand blasting
Vacuum cleaner for separating chips and recycling lubricating oils TC100 IF
Vacuum cleaner for separating chips and recycling lubricating oils TC100 IF
Basket vacuum cleaner for separating chips and recycling lubricating oils TC100 IF

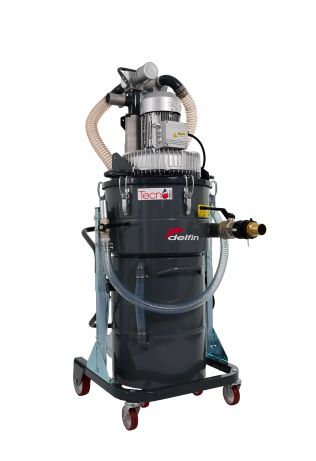

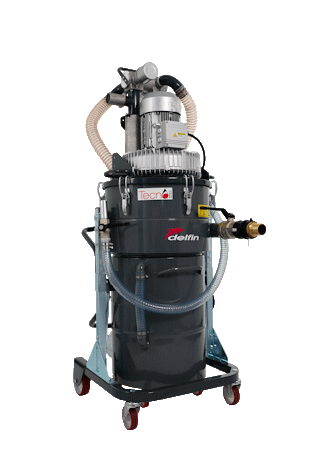

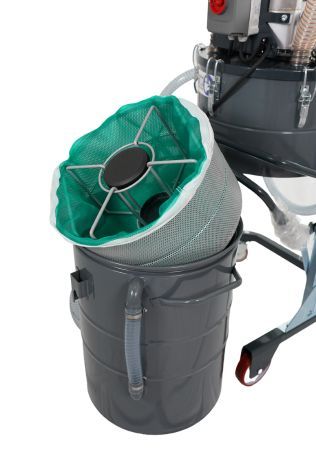

The TC100 IF vacuum cleaner is a powerful three-phase vacuum equipped with a side channel blower, designed specifically for the mechanical industry and maintenance of CNC machine tools. Coolant liquids and emulsions can be suctioned continuously, even 24 hours a day, separating off any metal chips or swarfs and allowing the vacuumed liquid to be reused. This can mean significant savings in terms of money and time spent servicing machinery. 100 litre liquid capacity, 40 litre sieve grid basket for metal chips and rapid discharge of liquid via reversed airflow.

ADVANTAGES

  • Side channel blower motor , powerful and silent, totally maintenance free, suitable for continuous duty
  • Tangential suction inlet with integrated separation cyclone
  • Vacuum gauge to detect filter clogging
  • Compact and mobile
  • Easy filter replacement
  • PPL filter for protection of motors from liquids and foam
  • Foam filter for protection of motors from liquid mist

DATASHEET

Index UnitTECNOIL 100IF TR
VoltageV - Hz400 - 50
Power kW3
Max waterliftmmH2O3.000
Max air flowm³/h300
Noise level (EN ISO 3744)dB(A)78
Filter Type3D SuperWeb
Media - FiltrationPolypropylene - 20μm
Discharge systemReverse flow
Liquids capacitylt.100
Solids capacitylt.40
Discharge speed lt / min200
Floating deviceYes
Dimensionscm67x66x135h
Weightkg95
Download TECNOIL 100IF TR

OTHER SETUPS

TC100 IF 3M
SINGLE PHASE VACUUM FOR SEPARATING METAL CHIPS AND RECYCLING LUBRICATION OIL

  • Building and construction
  • Electronics
  • Leather working
  • Optics
  • Plastics
  • Waste treatment - Recycling
  • Sand blasting
SINGLE PHASE VACUUM FOR SEPARATING METAL CHIPS AND RECYCLING LUBRICATION OIL TC100IF 3M

3 powerful single-phase motors instead of a side channel blower means suction can be left on full power, whilst handling of the vacuum cleaner has been improved. The system of reversed airflow allows the vacuumed liquid to be reinserted quickly and easily into the machine tools.

ADVANTAGES

  • Tangential suction inlet with integrated separation cyclone
  • Complete steel construction
  • Three powerful by pass motors with independent cooling
  • Compact and mobile
  • Easy filter replacement
  • PPL filter for protection of motors from liquids and foam
  • Foam filter for protection of motors from liquid mist
  • Saving while recovering, filtrating and reusing cutting oil and emulsionNuovo testo
  • Suction from machine tools of oils and coolants mixed with metal chips
  • Discharge system through reverse flow by means of an hose. No need of discharge pump

DATASHEET

Index UnitTECNOIL 100IF 3M
VoltageV - Hz230 - 50
Power kW3,45
Max waterliftmmH2O2.000
Max air flowm³/h540
Noise level (EN ISO 3744)dB(A)76
Filter Type3D SuperWeb
Media - FiltrationPolypropylene - 20μm
Discharge systemReverse flow
Liquids capacitylt.100
Solids capacitylt.40
Discharge speed lt / min140
Floating deviceYes
Dimensionscm67x66x125h
Weightkg70
Download TECNOIL 100IF 3M

Ask for a free quotation
