TC 100 MPI

Overview

Description

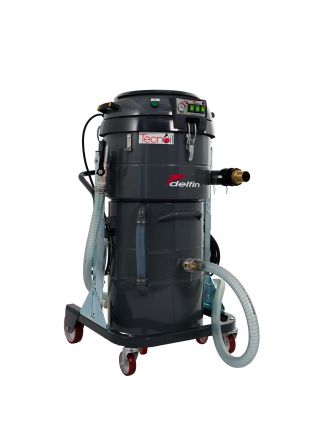

The TC100 MPI oil and chip vacuum cleaner is a powerful single-phase vacuum cleaner equipped with 3 single-phase motors, specifically designed for the mechanical industry and the maintenance of machine tools and CNCs. It allows simultaneous suction, filtration, and discharge of emulsion liquid, separating the metal chips and enabling the reuse of the collected liquid, resulting in significant cost savings and reduced maintenance times for machinery. 100-liter liquid capacity, sieve grid basket and 300-micron PPL filter with 40-liter capacity for chips. A submersible pump allows the reintroduction of filtered liquid even during suction!

Features

Application

Separation and recovery of oil and chips for machine tool maintenance

Footprint

Easy to transport

Material

Complete painted steel construction

Filter

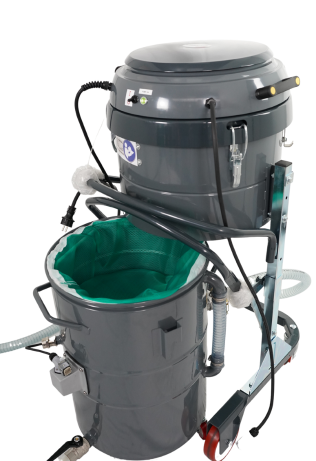

3D superweb kit, sieve grid basket for chip separation and polypropylene filter
for liquids

Features

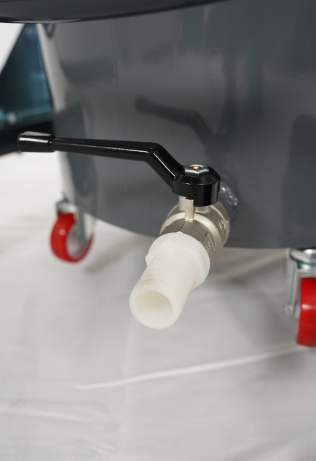

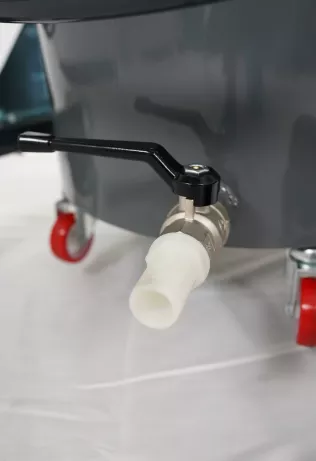

Liquid discharge by flow reversal or submersible pump
(with continuous suction and discharge)

Technical specs

Technical details

TC 100 MPI
	Unit of measure	Data
Voltage	V	230
Power	kW	3.45
Frequency	Hz	50
Current Draw	A	15.00
Inlet Diameter	mm	50
Noise Level (EN ISO 3744)	dB(A)	76
Dimensions	cm	87x66x125h
Weight	Kg	70
Liquid Capacity		60
Solids Capacity		40
Discharge Flow Rate		160
Max Vacuum Rate		2.500
Continuous Duty Vacuum		2.500
Max Airflow		540
Motor Type		Single-phase Bypass

Certifications

Filter class

	Unit of measure	Data
Primary Filter		3D Superweb
Primary filter diameter	mm	500
Primary filter class (IEC 60335-2-69)		Polipropilene
Filtration	µm	20
Discharge system		Internal pump
Prevalenza	mmH₂O	7
Float		Electrical

Unit of measure

Data

Primary Filter

3D Superweb

Primary filter diameter

500

Primary filter class (IEC 60335-2-69)

Polipropilene

Filtration

µm

Discharge system

Internal pump
