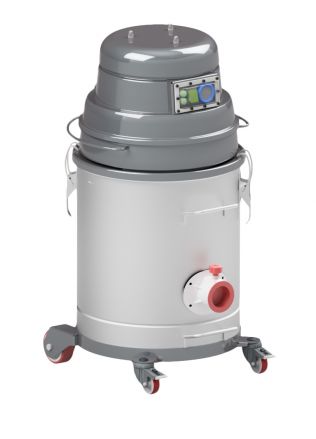

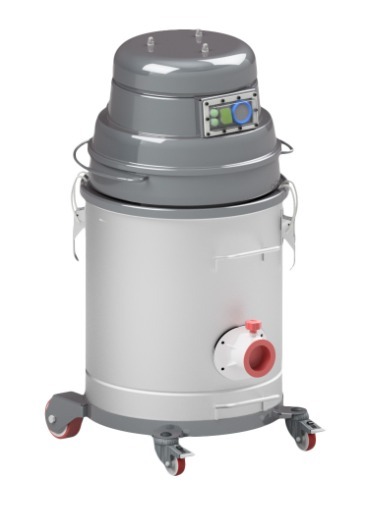

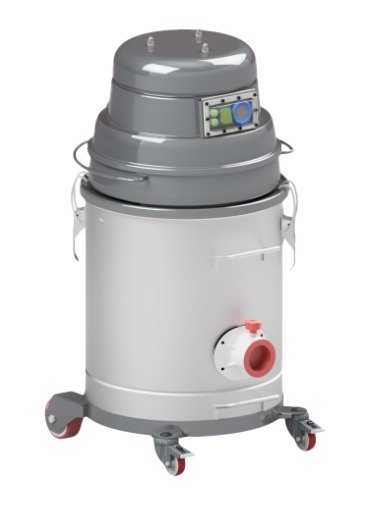

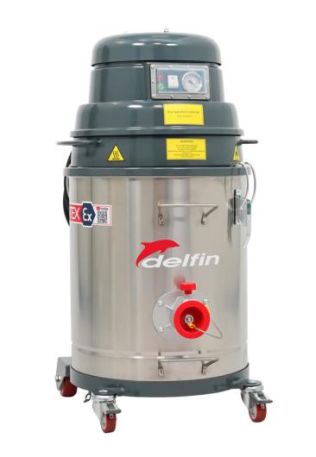

MTL 301-302
COMPACT SINGLE-PHASE INDUSTRIAL VACUUM CLEANER FOR ATEX ZONES 20, 21, 22 AND ACD

  • Additive manufacturing

Compact, easy to handle and extremely versatile.
The new ATEX-certified vacuum cleaner model 300, available in the ACD version and with double ATEX certification, has been studied to vacuum in total safety combustible powders both in the ATEX zones and in the areas not classified at risk of explosion.
The new Brushless or Bypass single-phase head for ATEX-certified models is protected by the innovative Ex tb certified safety enclosure specifically designed to prevent the entry of combustible dust and prevent explosion risks. The stainless steel container AISI304,  the antistatic polyester filter M and the absolute filter HEPA are standard to ensure the vacuuming operation in total safety. The option of using class M filter bags adds an additional level of protection for the operator and ease of recovered dust disposal.

ADVANTAGES

  • Compact and mobile
  • Easy filter replacement
  • Additional HEPA filter (99,995% on 0,18 micron) included
  • Stainless steel AISI304 collection tank
  • Earth grounding
  • Easy to clean and to maintain
  • Accessory kit included
  • Maintenance-free suction unit, 20,000 running hours guaranteed
  • Vacuum powerhead Ex tb Dust Tight IP64 certified
  • ATEX accessories and non-metallic parts tested
  • Compliance to EN IEC 62784:2018 for Zone 22

DATASHEET

Index UnitMTL 301 1/2DMTL 301 1/3D
Atex zones
VoltageV - Hz115/230 - 50/60 1~230 - 50/60 1~
Power kW1,11,1
Max water liftmmH₂O2.2502.500
Max air flowm³/h215215
Suction inletmm5050
Noise level (EN ISO 3744)dB(A)7474
MarkingII 1/3D Ex h tb IIIC T80°C (Int) /T95°C (ext) Da/Dc
Filter TypeStarStar
Surface - Diametercm²-mm4.000 - 3604.000 - 360
Material - EfficiencyPolyester - ANT MPolyester - ANT M
Capacityl4040
Dimensionscm44x42x84h44x42x84h
Weightkg2626
Download MTL 301 1/2DDownload technical sheet
Download MTL 301 1/3DDownload technical sheet

OTHER SETUPS

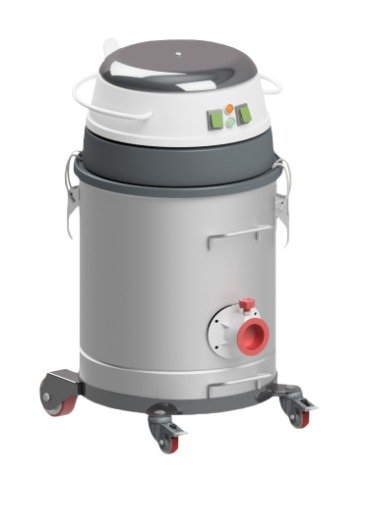

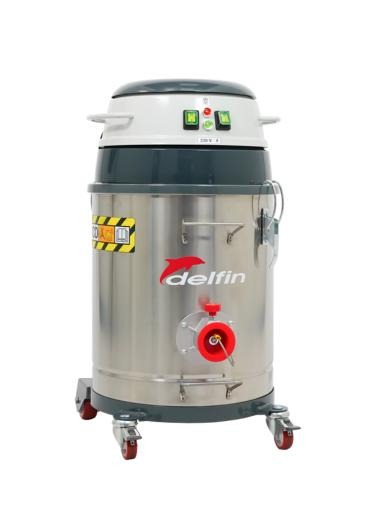

MTL 302 ACD
ACD INDUSTRIAL VACUUM CLEANER FOR COMBUSTIBLE DUST IN NON-ATEX ZONE (INTERNAL ZONE 20)

    302 ACD industrial vacuum cleaner for combustible dust

    The new MTL 302 ACD is ideal for the vacuuming of combustible dust in non-ATEX classified zones.The head is equipped with two single-phase bypass motors that guarantee high vacuuminf performance for non-continuous applications. The integrated AISI304 stainless steel container and the M antistatic polyester filter as standard guarantee a safe vacuuming operation. Class M antistatic disposable bags are also available for safe dust collection and disposal.

    ADVANTAGES

    • Compact and mobile
    • Easy filter replacement
    • Large surface antistatic filter
    • Stainless steel AISI304 collection tank
    • Easy to clean and to maintain
    • Accessory kit included
    • Vacuum powerhead Ex tb Dust Tight IP64 certified
    • ATEX accessories and non-metallic parts tested

    DATASHEET

    Index UnitMTL 302 ACD
    VoltageV - Hz230 - 50/60 1~
    Power kW2,2
    Max water liftmmH₂O2.500
    Max air flowm³/h360
    Suction inletmm50
    Noise level (EN ISO 3744)dB(A)74
    MarkingII 1/-D Ex h IIIC T80°C (Internal) Da/-
    Atex zonesCE EX ACD
    Filter TypeStar
    Surface - Diametercm²-mm4.000 - 360
    Material - EfficiencyPolyester - ANT M
    Secondary filterHEPA
    Capacityl40
    Dimensionscm44x42x78h
    Weightkg25
    Download MTL 302 ACDDownload technical sheet
