MTL452 ACD

Overview

Description

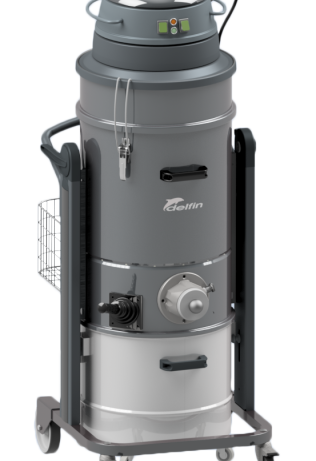

MTL452 BP is a powerful industrial vacuum cleaner equipped with an antistatic class M filter for the filtration of the finest dust, which, thanks to the manual cleaning system with filter shaker, maintains its suction efficiency over time.

Its compact dimensions, combined with a 45-liter collection tank, make MTL452 BP the ideal support for those who, in the industrial field, want to optimize cleaning and maintenance operations.

Features

Application

Dust and solids / suitable for work in zone 21 (cat 2D)

Footprint

Compact and mobile

Material

Stainless steel tank AISI304Filter: polyester, class M
antistatic, integrated manual cleaning system

Features

Certified Ex tb Dust Tight IP64 head, tested ATEX non-metallic accessories and parts

Compliance

Compliance with EN IEC 62784:2018 for zone 22

Technical specs

Technical details

MTL452 ACD
	Unit of measure	Data
Zone		Non-classified environment
Ex Category		1/- D (ACD)
Marking		II 1/-D Ex h IIIC T80°C (Internal) Da/-
Voltage	V	230
Power	kW	2.20
Frequency	Hz	50/60
Current Draw	A	10.00
Inlet Diameter	mm	80
Bin Capacity	lt.	45
Noise Level (EN ISO 3744)	dB(A)	74
Dimensions	cm	58x70x140h
Weight	Kg	56
Max Vacuum Rate		2.500
Continuous Duty Vacuum		2.500
Max Airflow		360
Motor Type		Single-phase Bypass

Certifications

Filter class

	Unit of measure	Data
Primary Filter		Star
Primary filter load	m³(m²/h)	180
Primary filter surface area	cm²	20.500
Primary filter diameter	mm	420
Primary filter media		Polyester
Primary filter class (IEC 60335-2-69)		ANT M
Filter cleaning system		Manual
HEPA absolute filter		Standard
Absolute filter surface area	cm²	20.500
Absolute filter class (EN 1822-5)		H14 con 99,995% di efficienza secondo il metodo MPPS

Unit of measure

Data

Primary Filter

Star

Primary filter load

m³(m²/h)

180

Primary filter surface area

cm²

20.500

Primary filter diameter

420
