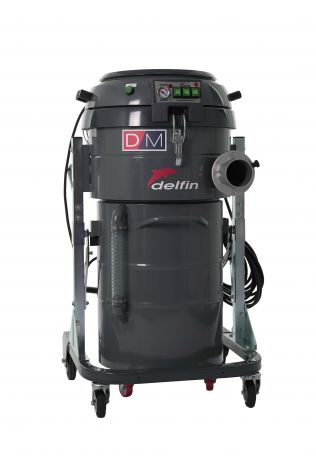

DM40 OIL
SINGLE-PHASE VACUUM CLEANER FOR SEPARATING AND RECYCLING OIL AND METAL CHIPS

  • Metalworking

The DM40 OIL is the most compact vacuum cleaner in the Tecnoil line, created for extracting and recycling liquids, oils and emulsions from CNC machine tools, also when mixed with dust or mud. A sieve grid basket separates the vacuumed chips from the liquid. Once filtered, the liquid collects in the 100 litre container below. A drainage valve makes it is easy to discharge and re-insert the oil back into the machine, while the metal chips can be easily disposed of. Liquid level indicator and integrated float to protect the motors .

ADVANTAGES

  • Tangential suction inlet with integrated separation cyclone
  • Complete steel construction
  • Three powerful by pass motors with independent cooling
  • Compact and mobile
  • Floating device to stop the suction when container is full
  • Discharge hose for liquids
  • Filtration and recovery of cutting oil and coolant liquid

DATASHEET

Index UnitDM 40 OIL
VoltageV - Hz230 - 50
Power kW3,45
Max water liftmmH₂O2.500
Max air flowm³/h540
Noise level (EN ISO 3744)dB(A)76
Filter TypeBag
Surface - Diametercm²-mm500
Media - FiltrationPolypropilene - 300µm
Discharge system
Liquids capacitylt80
Solids capacitylt60
Floating device
Dimensionscm67x66x125h
Weightkg65
Download DM 40 OILDownload technical sheet
